9.5 L Single Acting Hydraulic Pump Dump Trailer Unloading Repair 12v

9.5 L Single Acting Hydraulic Pump Dump Trailer Unloading Repair 12v

2,620.00 SEK
2,620.00 SEK
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features & Details

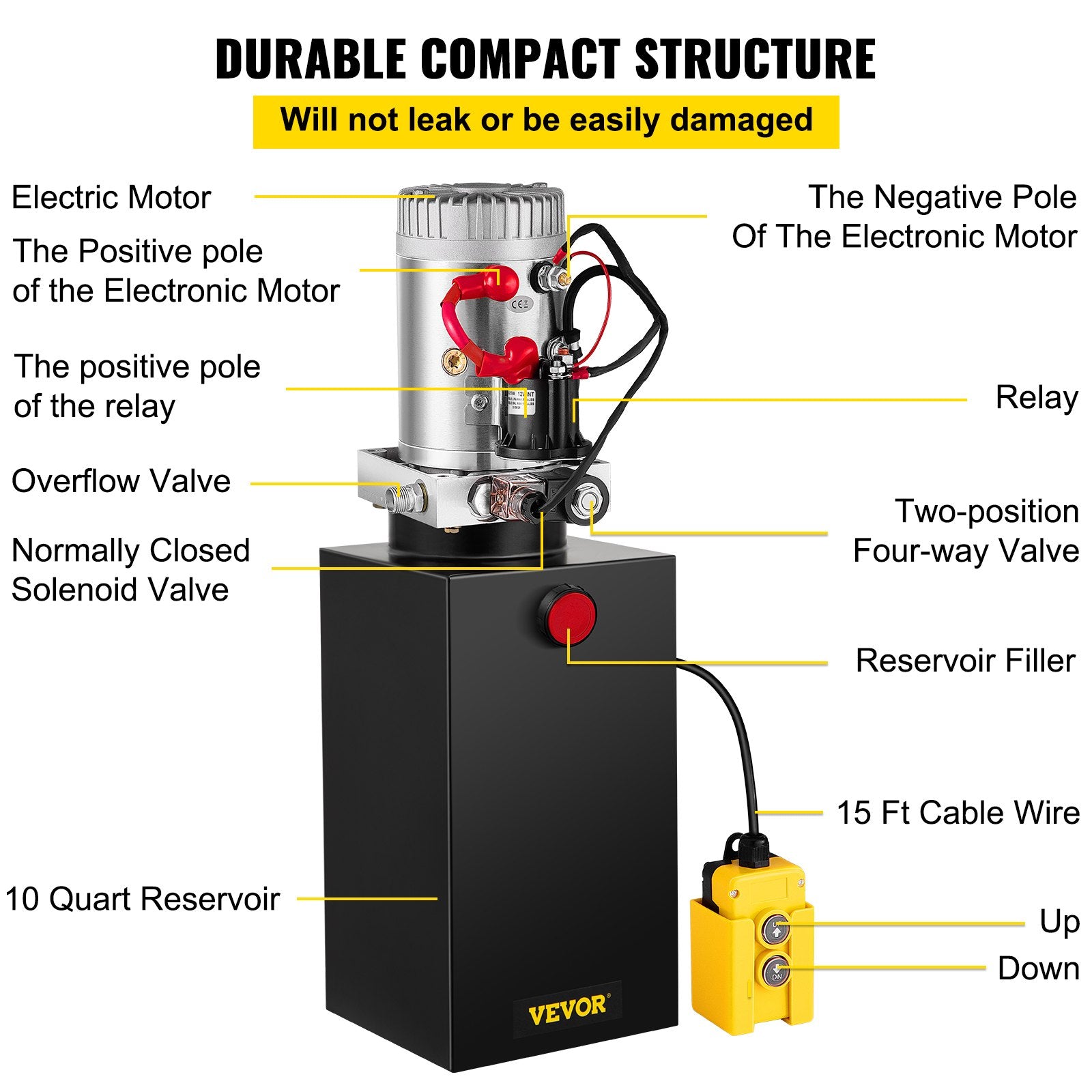

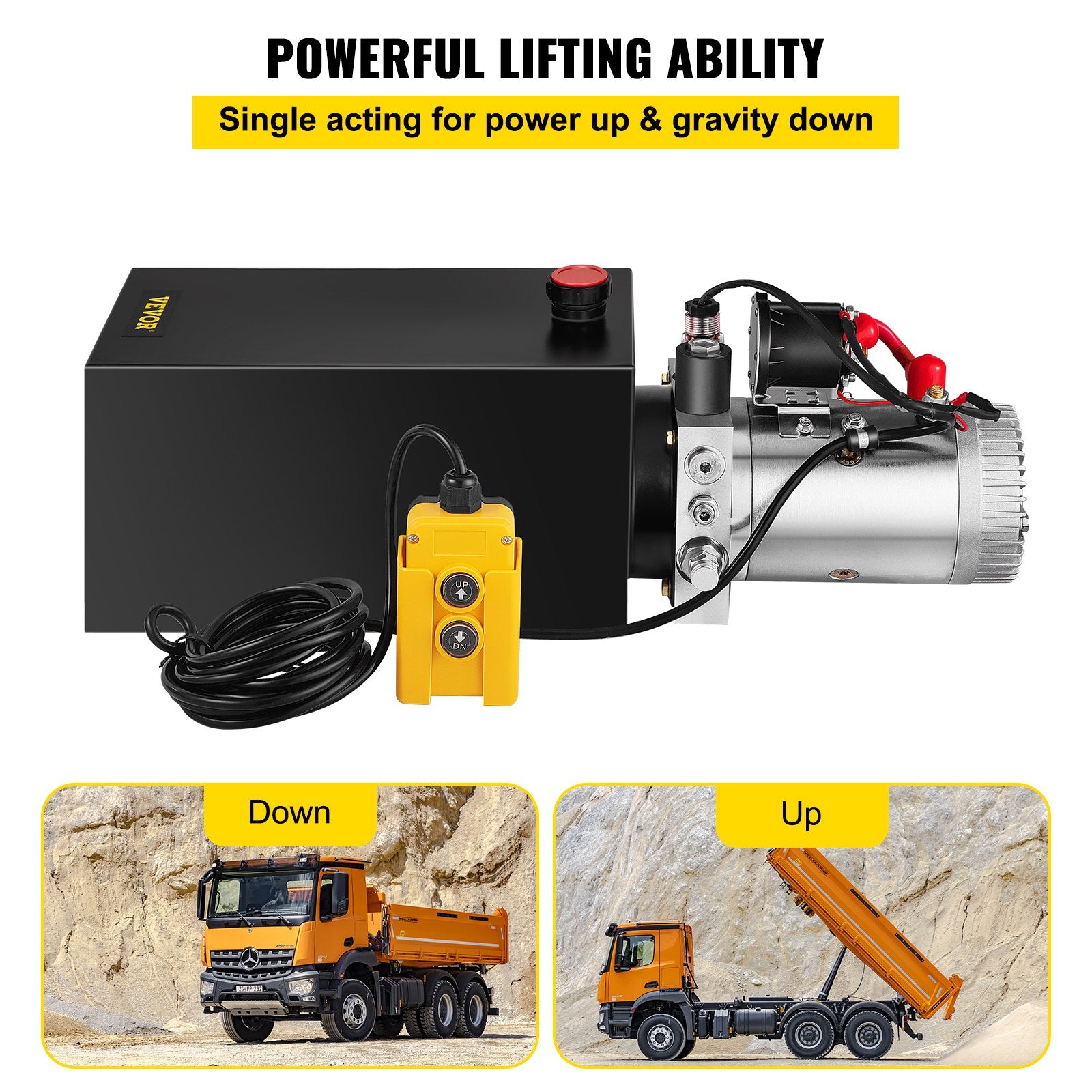

  • Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 10-quart reservoir. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; it is a single-acting pump for power up and gravity down.

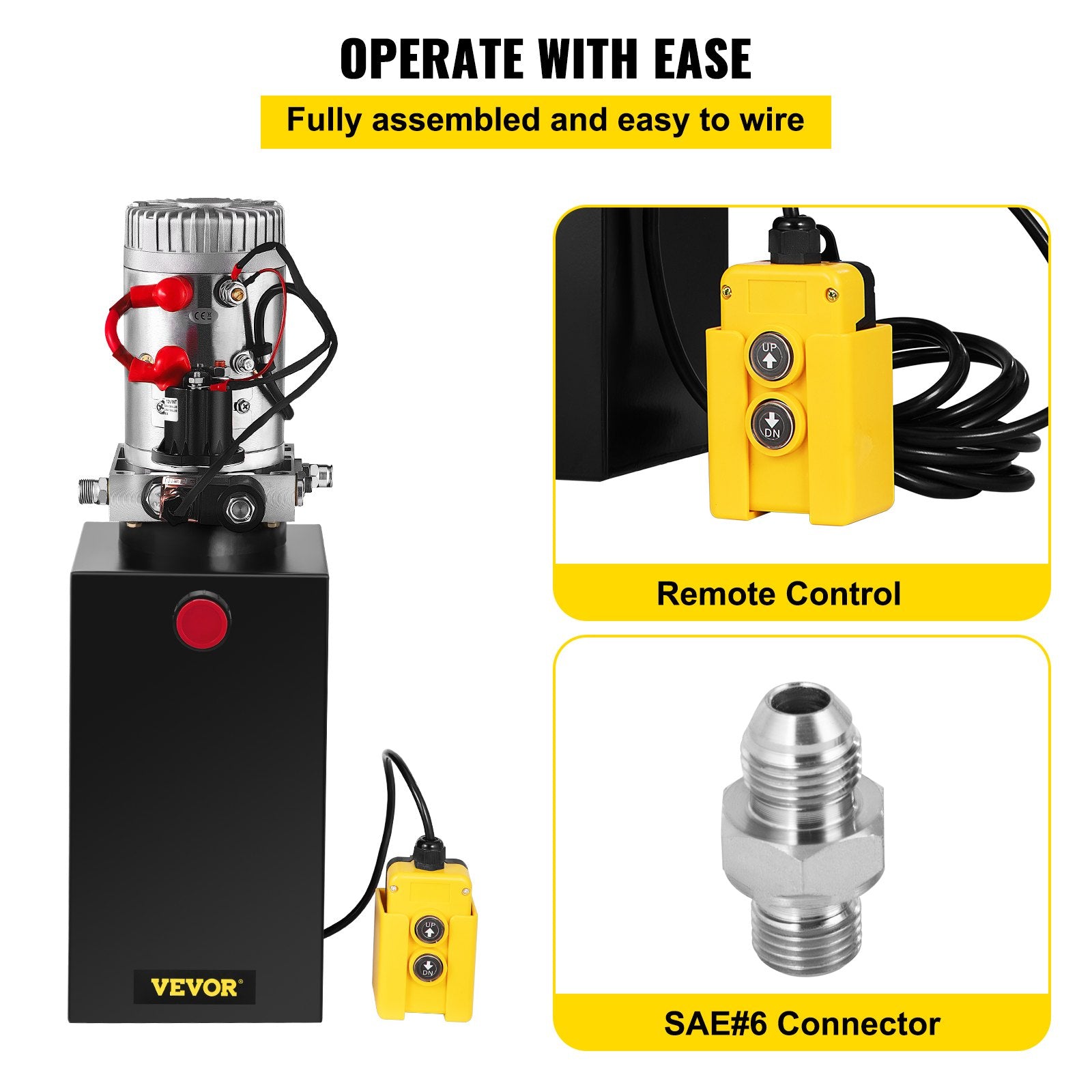

  • Easy to Use: This 12V hydraulic power unit has been fully assembled in advance. The wiring is simple with operating instructions and it comes with a 15ft remote for long-distance control. In addition, we offer you one extra SAE#6 connector for replacement.
  • Reliable Quality: The dump trailer pump is made of sturdy metal; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with a relief valve, it avoids overpressure, safer and reliable.
  • Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time.
  • Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.

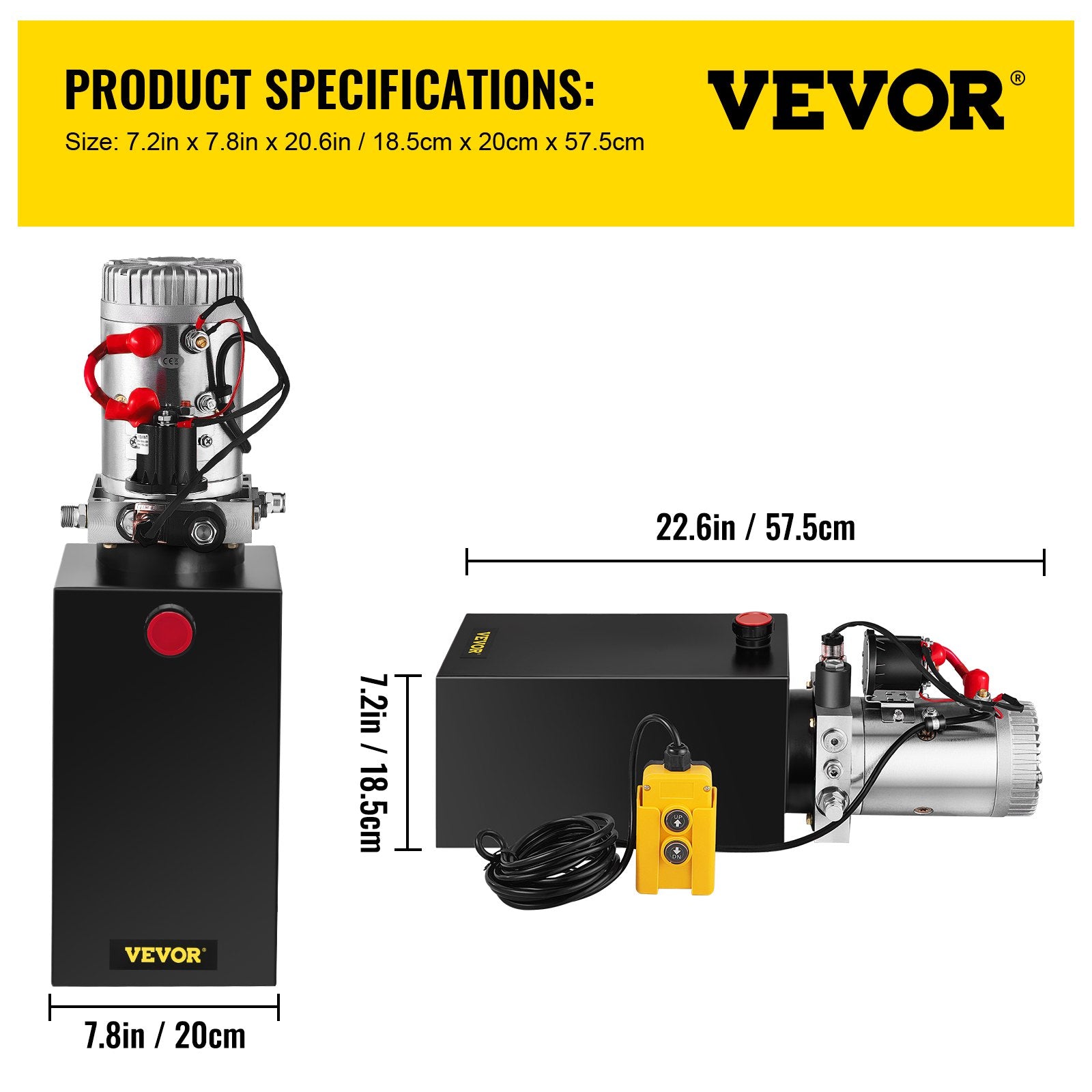

Product Specification
  • Connector: SAE # 6
  • Max. Relief Valve Setting B Port: 1500 PSI
  • Traffic: 1.1 cc/r
  • Mount Position: Horizontal/ Vertical
  • Rotation: Clockwise
  • Flow: 2.0 GPM
  • Max. Relief Valve Setting A Port: 3200 PSI
  • Tank Capacity: 10L/ 10Quart/ 2.5 Gal
  • Control: Solenoid and Handheld Pendant
  • Rated Speed: 2850R/MIN
  • Duty: 3 Min
  • Voltage: DC12V
  • Model: 10QSAMHP
  • Pendant Control Length: 15ft/ 4.5 m
  • Tank Material: Metal
  • Power: 1.6KW (Rated), 3.0KW (Max)
