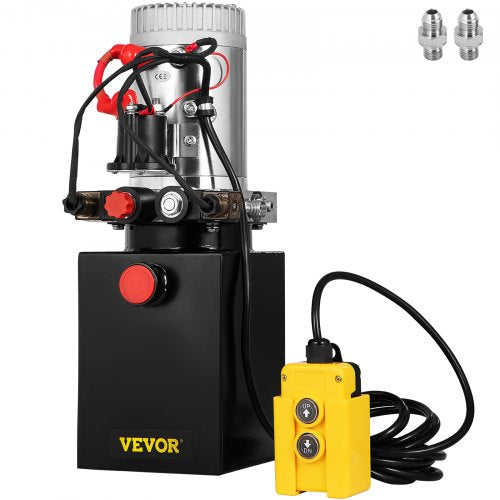

Mophorn Hydraulic Pump Double Acting Hydraulic Power Unit 4L Steel Tank Hydraulic Pump Power Unit 12V DC for Dump Trailer Car Lifting

Mophorn Hydraulic Pump Double Acting Hydraulic Power Unit 4L Steel Tank Hydraulic Pump Power Unit 12V DC for Dump Trailer Car Lifting

2,920.00 SEK
2,920.00 SEK
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features & Details
  • Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 4-quart reservoir. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; the flow rate is 2 GPM, and it is a double-acting pump for both power up and power down.

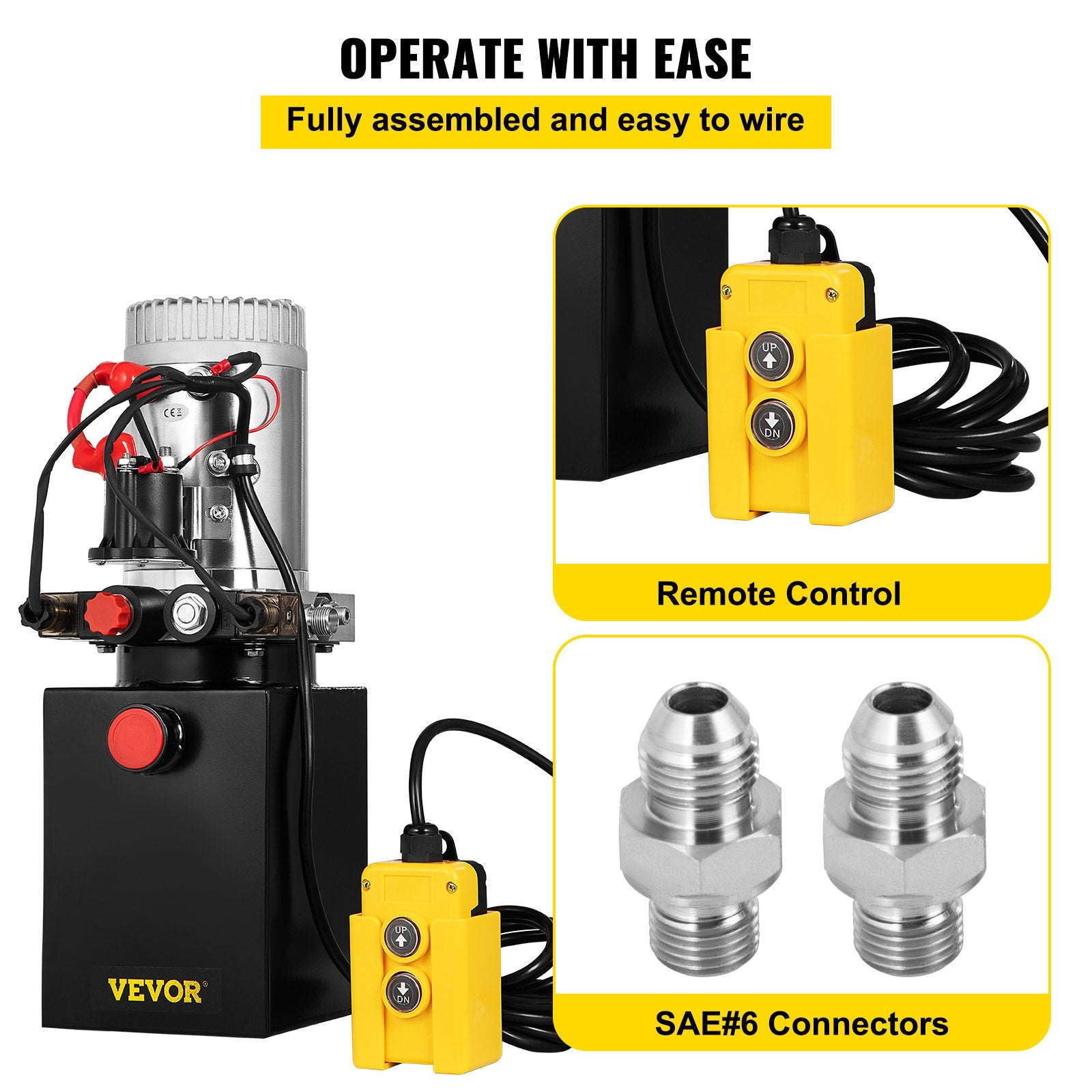

  • Easy to Use: This 12V hydraulic power unit has been fully assembled in advance. The wiring is simple and comes with operating instructions. Two additional SAE#6 connectors and one 15 ft remote control are included in the package.
  • Reliable Quality: The dump trailer pump is made of sturdy metal; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with an overflow valve, it automatically releases when overpressure, safer and reliable.

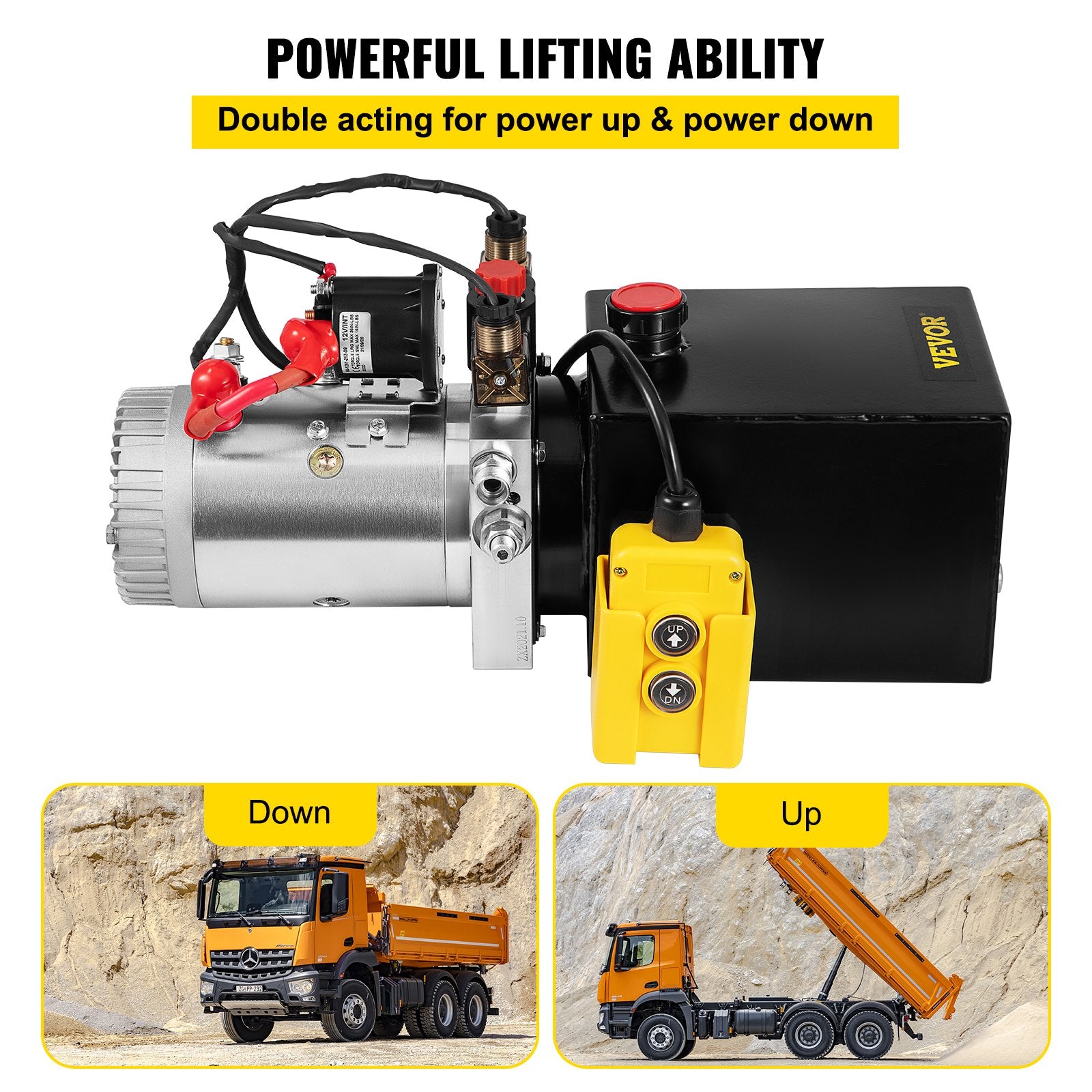

  • Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time.
  • Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.
Product Specification
  • Pressure relief valve: 22MPA (3200 PSI Max. Relief Setting For Increased Lifting Power on A port)
  • Hand held pendant with about 15 feet (4.5 m) removal cord and start solenoid:
  • 1500 PS Max Relief Setting on B port:
  • Double acting Power-Up/Power Down:, SAE # 6 Port
  • Horizontal mount:
  • Displacement of hydraulic pump: 0.825GPM
  • 4 Quart Metal Reservoir:
  • Rated speed: 2850R/MIN
  • Motor voltage: DC12-DV24
  • Motor power: 1.6-3.0KW
  • Tank Material: Metal
  • Fuel tank: 4 quart
