Linear Actuator 12V 30.5 cm High Load 149.7 kg/1500N 0.5 cm/s IP54 Protection

Linear Actuator 12V 30.5 cm High Load 149.7 kg/1500N 0.5 cm/s IP54 Protection

Regular price 663 SEK
Regular price Sale price 663 SEK
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity
Features & Details
  • Precision Motion Control: VEVOR linear actuator offers precise position control with 0.19"/s stable speed and 330lbs high torque output. Perfect for tasks requiring exact positioning, such as robotic arms or electric beds that demand precision.

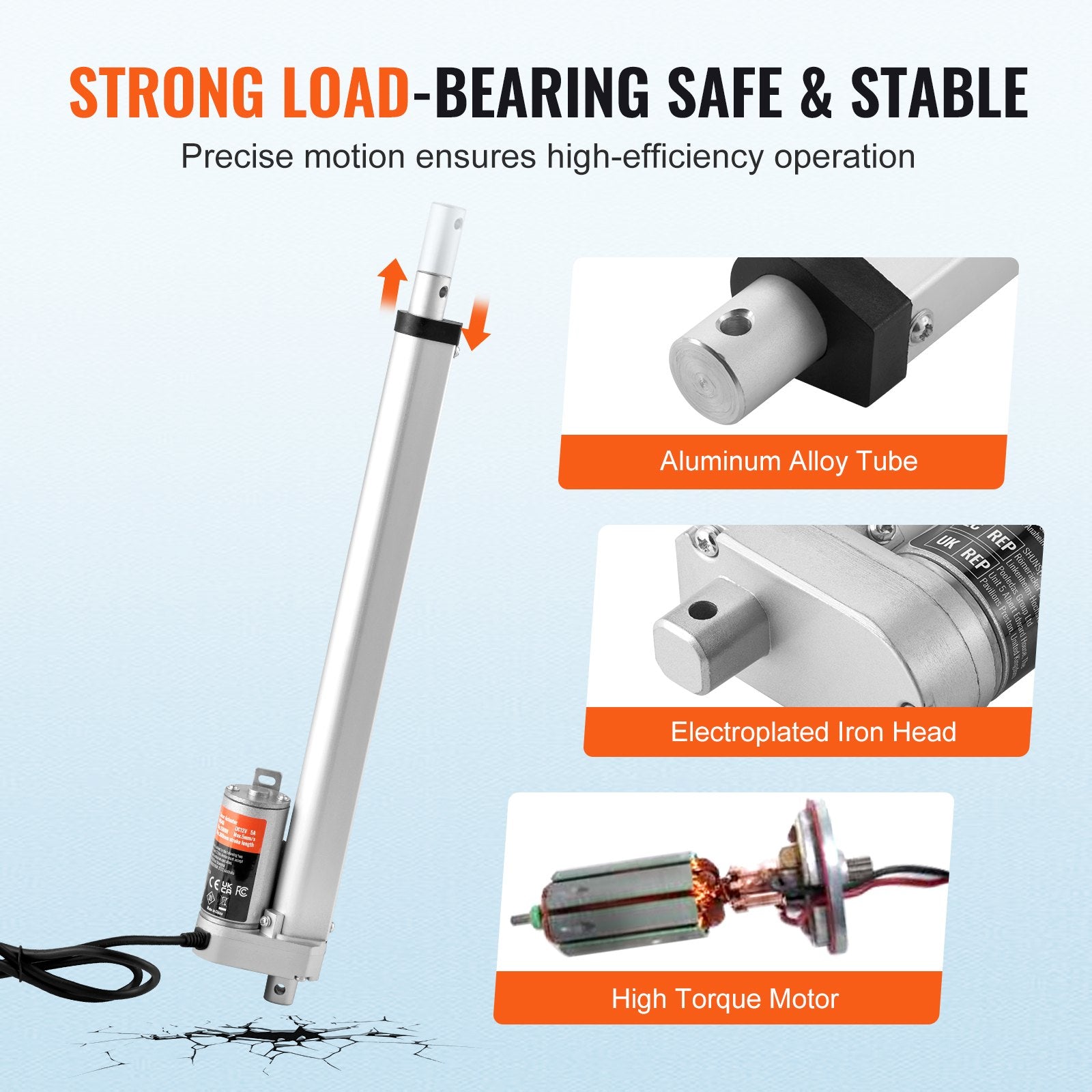

  • Durable and Sturdy: With reinforced structure and all-metal transmission mechanism, our 12V linear actuator motor ensures reliability under high loads. Suitable for various industrial automation and laboratory equipment, it withstands the rigors of long-term use.

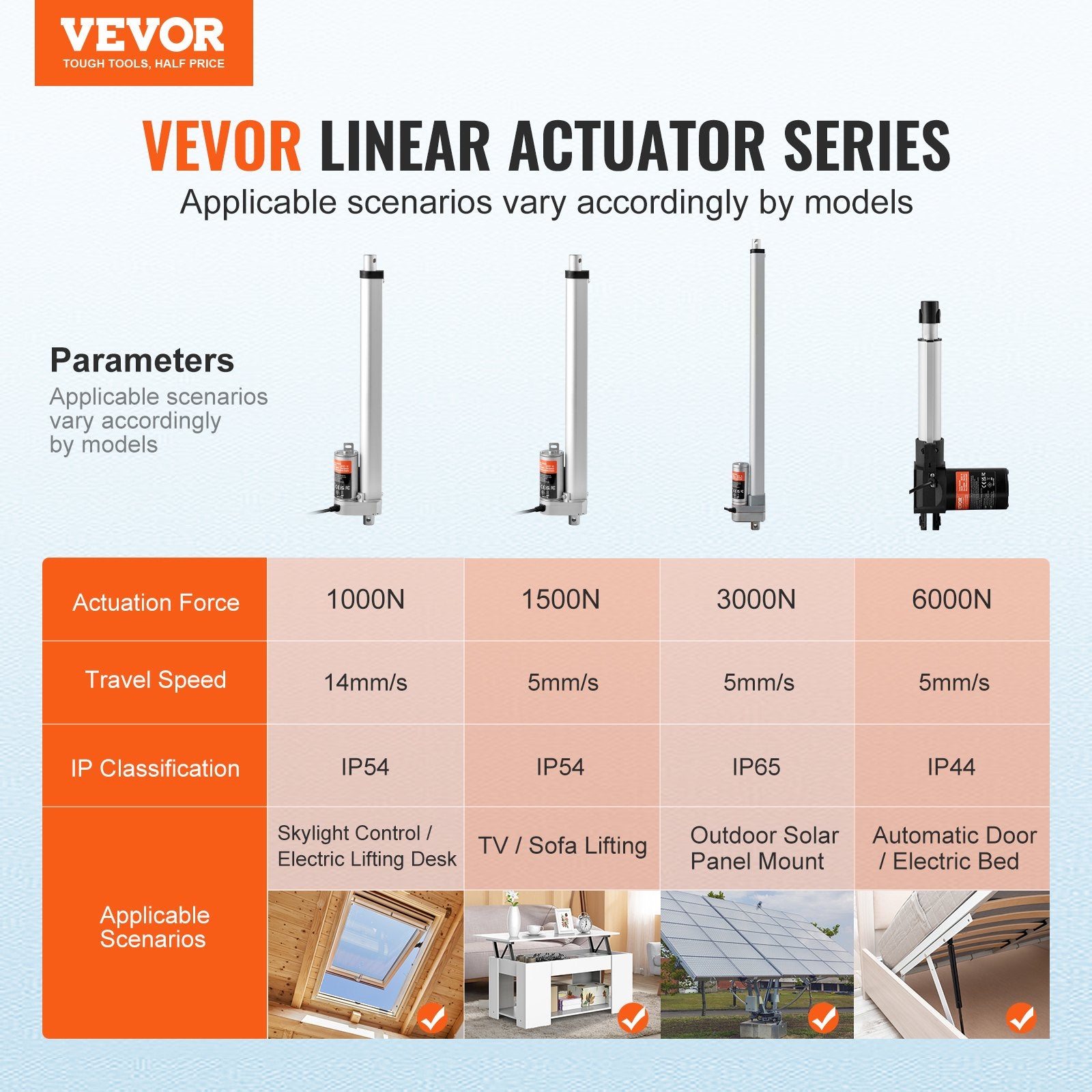

  • Versatile Applications: With a noise level below 60db, our linear motion actuator seamlessly fits into various applications, from furniture to automation systems, mechanical equipment, transportation, and more. Enjoy versatile functionality wherever you need it!

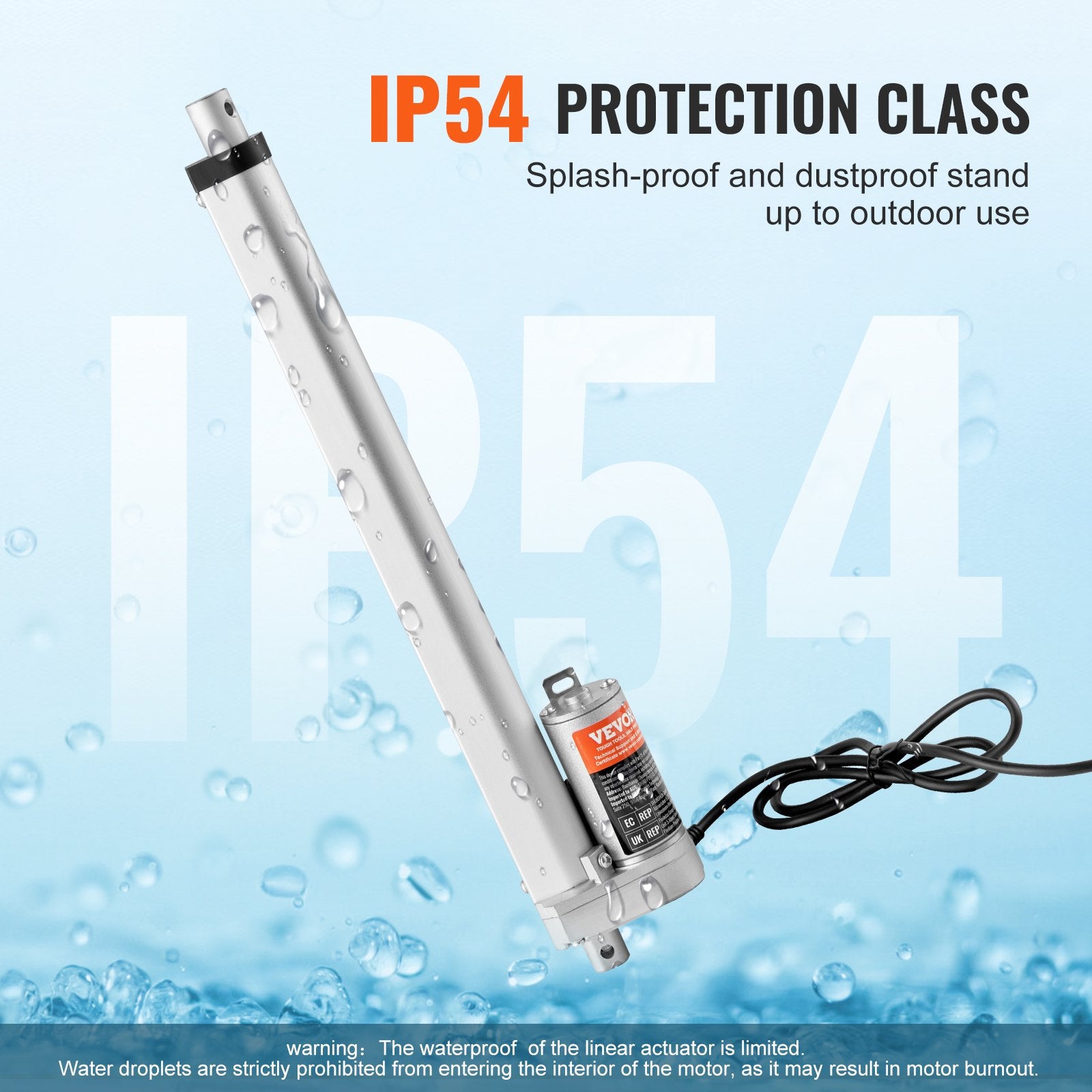

  • IP54 Protection Rating: With an IP54 protection rating, VEVOR 12V linear actuator excels in harsh environmental conditions like dust, splashing water, and light humidity. Whether for outdoor or industrial use, it provides exceptional protection. (Caution: Water should not penetrate the interior of the motor)

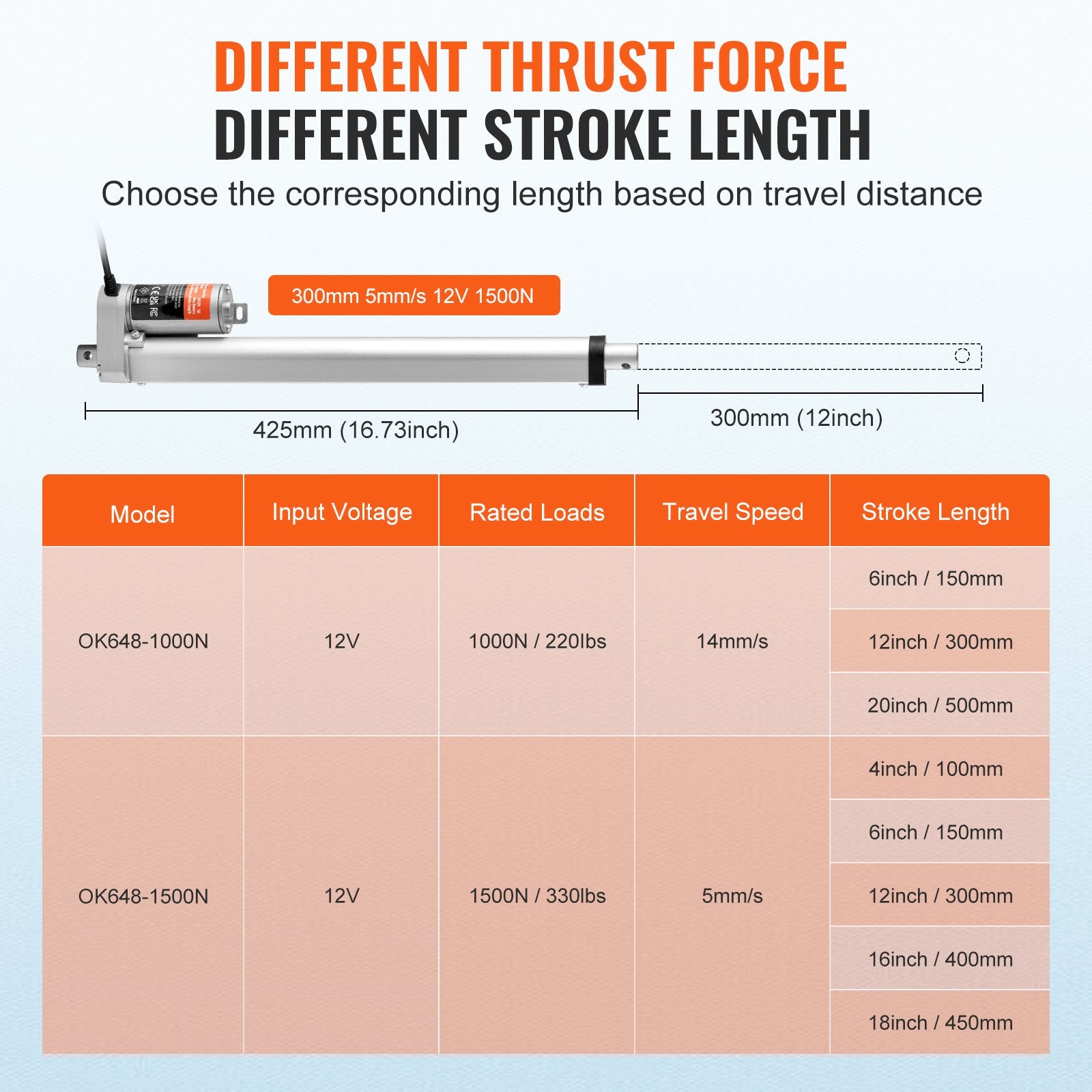

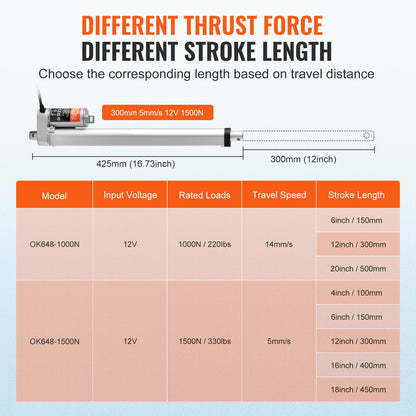

  • Key Specifications: Stroke Length: 12 inch (300mm); Travel Speed: 0.19 in/s (5mm/s); Retracted Length: 16.73" (425mm); Extended Length: 28.73" (725mm); Current Draw: 5amps; Rated Voltage: DC12V; Duty Cycle: 25%.

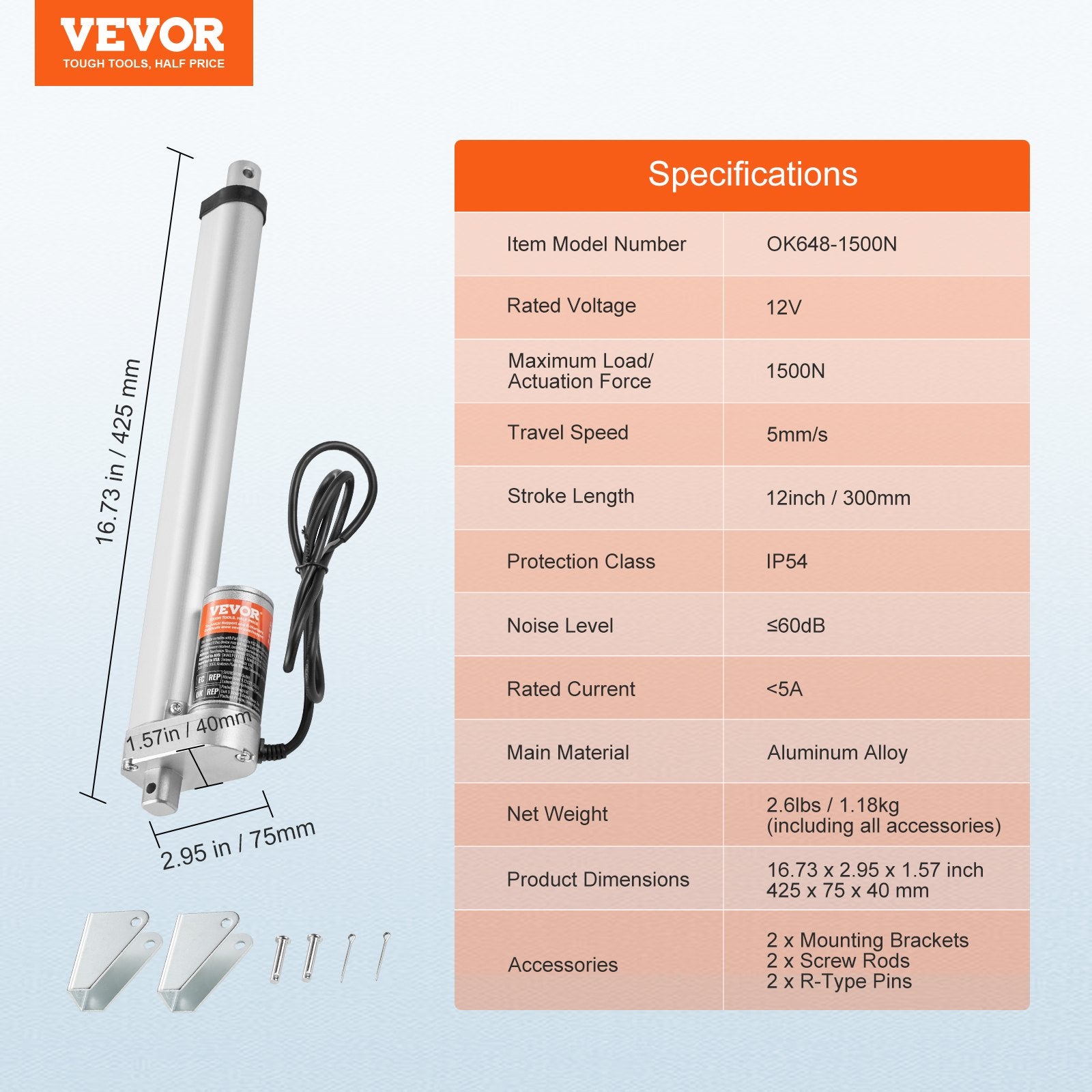

Product Specification
  • Protection Class: IP54
  • Noise Level: ≤60dB
  • Maximum Load/Actuation Force: 1500N
  • Item Model Number: OK648-1500N
  • Travel Speed: 0.19 inch/s / 5 mm/s
  • Rated Current: <5A
  • Stroke Length: 12 inch / 300 mm
  • Product Dimensions: 16.73 x 2.95 x 1.57 inch / 425 x 75 x 40 mm
  • Net Weight: 2.6 lbs / 1.18 kg (including all accessories)
  • Main Material: Aluminum Alloy
  • Rated Voltage: DC12V
