Hydraulic Cylinder 2\" Bore 36\" Stroke Hydraulic Ram Cylinder 3000psi Hydraulic Cylinders Welded Double Acting Cross Tube SAE6 Port Hydraulic Lifting Cylinder (2 X 36)

Hydraulic Cylinder 2\" Bore 36\" Stroke Hydraulic Ram Cylinder 3000psi Hydraulic Cylinders Welded Double Acting Cross Tube SAE6 Port Hydraulic Lifting Cylinder (2 X 36)

2,230.00 SEK
2,230.00 SEK
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features & Details
  • 【RIGID WELDED CONSTRUCTION】- Rigid welded construction, high tensile welded steel end mounts, threaded gland and top quality seal components allow cylinders to work in harsh conditions.
  • 【MAX LOAD-BEARING CAPACITY】- This hydraulic cylinder bore is 50mm/2inch, the longest Length is 2032mm/80inch, and the max load-bearing capacity is 4100 LBS.
  • 【STABLE SEALING PERFORMANCE】- All cylinders are fully and easily maintainable and repairable. Each cylinder is pressure tested at 150% of its working pressure before packing and shipping.
  • 【CONVENIENT TO ASSEMBLE】- All the components of this hydraulic cylinder are fully tested, well-designed, very sturdy and compact, easily to install and to disassemble.

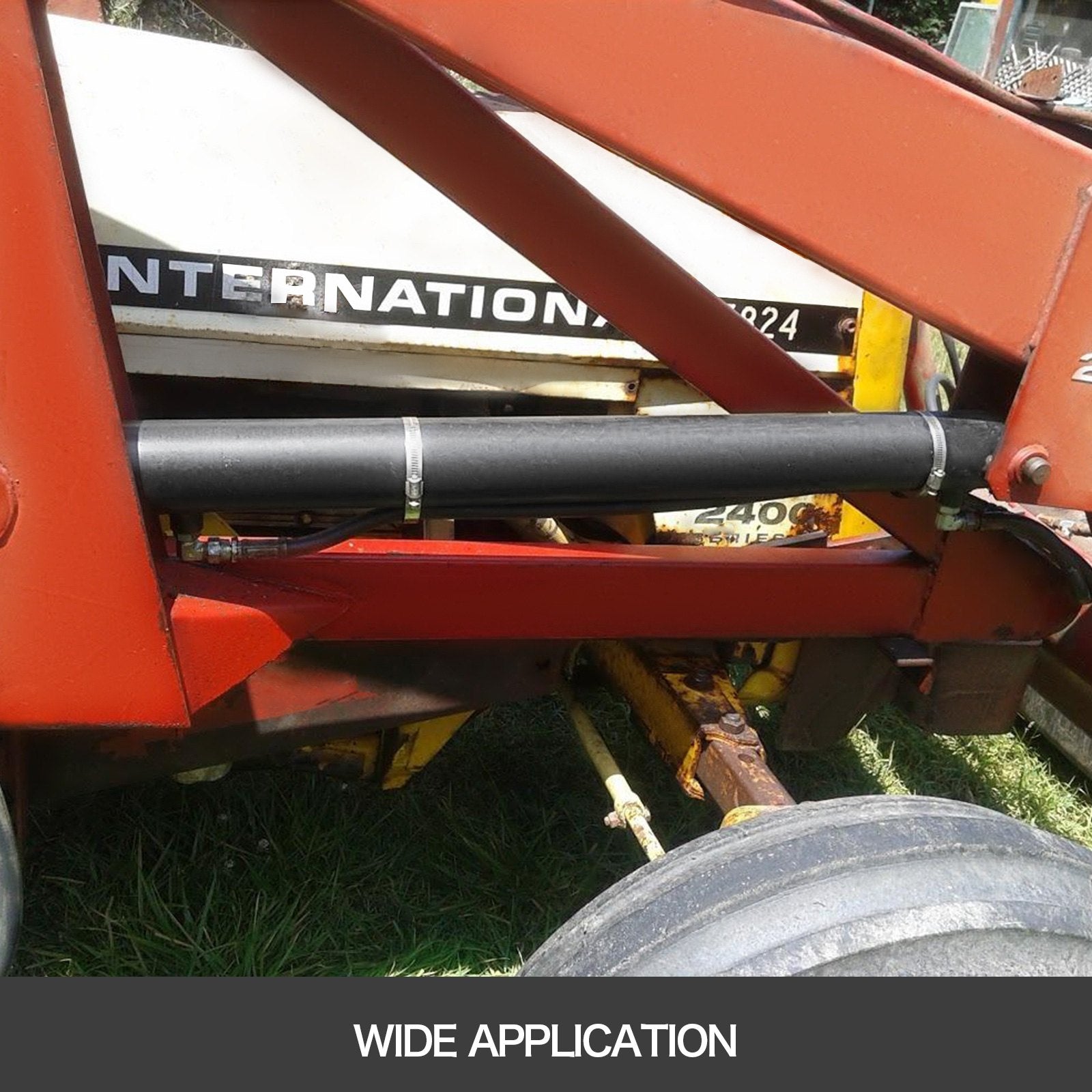

  • 【WIDE APPLICATION】- The product created for use in various types of mobile equipment such as waste, recycling, construction, transportation, agriculture, material handling, etc.

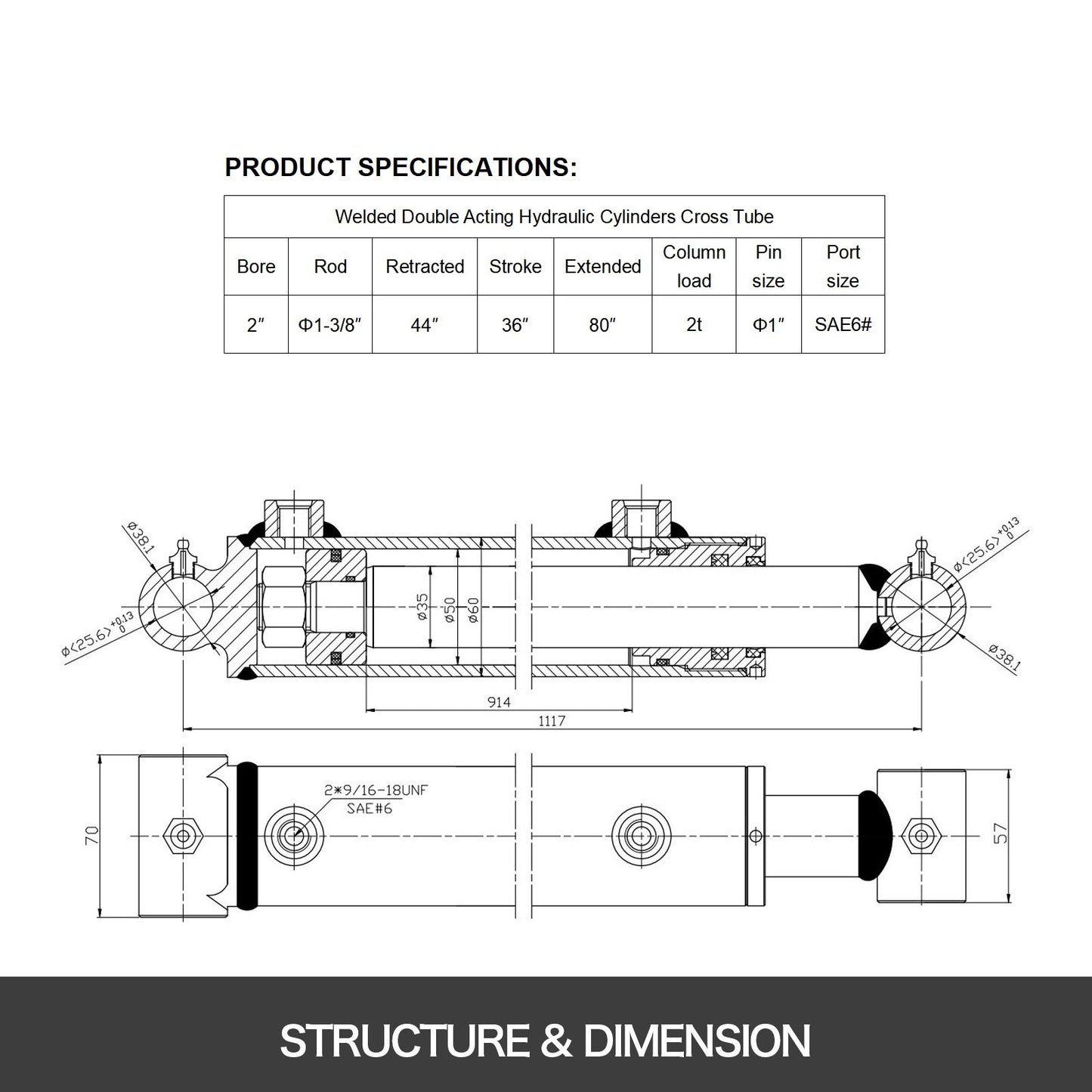

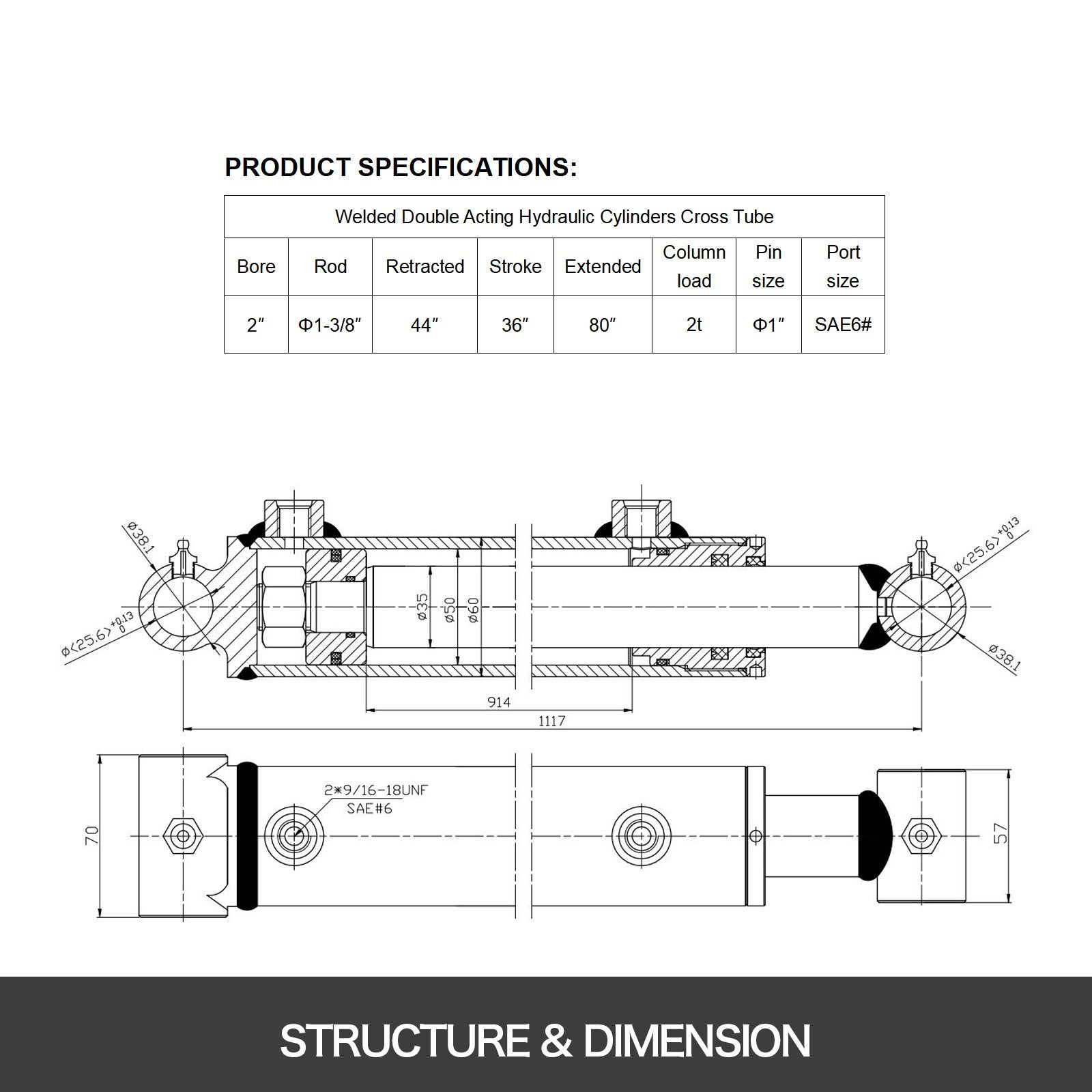

Product Specification
  • Cylinder Bore: 50mm/2"
  • Stroke: 914mm/36"
  • Diameter Of Piston Rod: 35mm/1.3"
  • Pin: 26mm/1.0"
  • Minimum Length: 1117mm/43.9"
  • Port Size: SAE6
  • Work Pressure: 3500PSI
  • Packing Size: 1160mm*85mm*85mm/45.6" x 3.3" x 3.3"

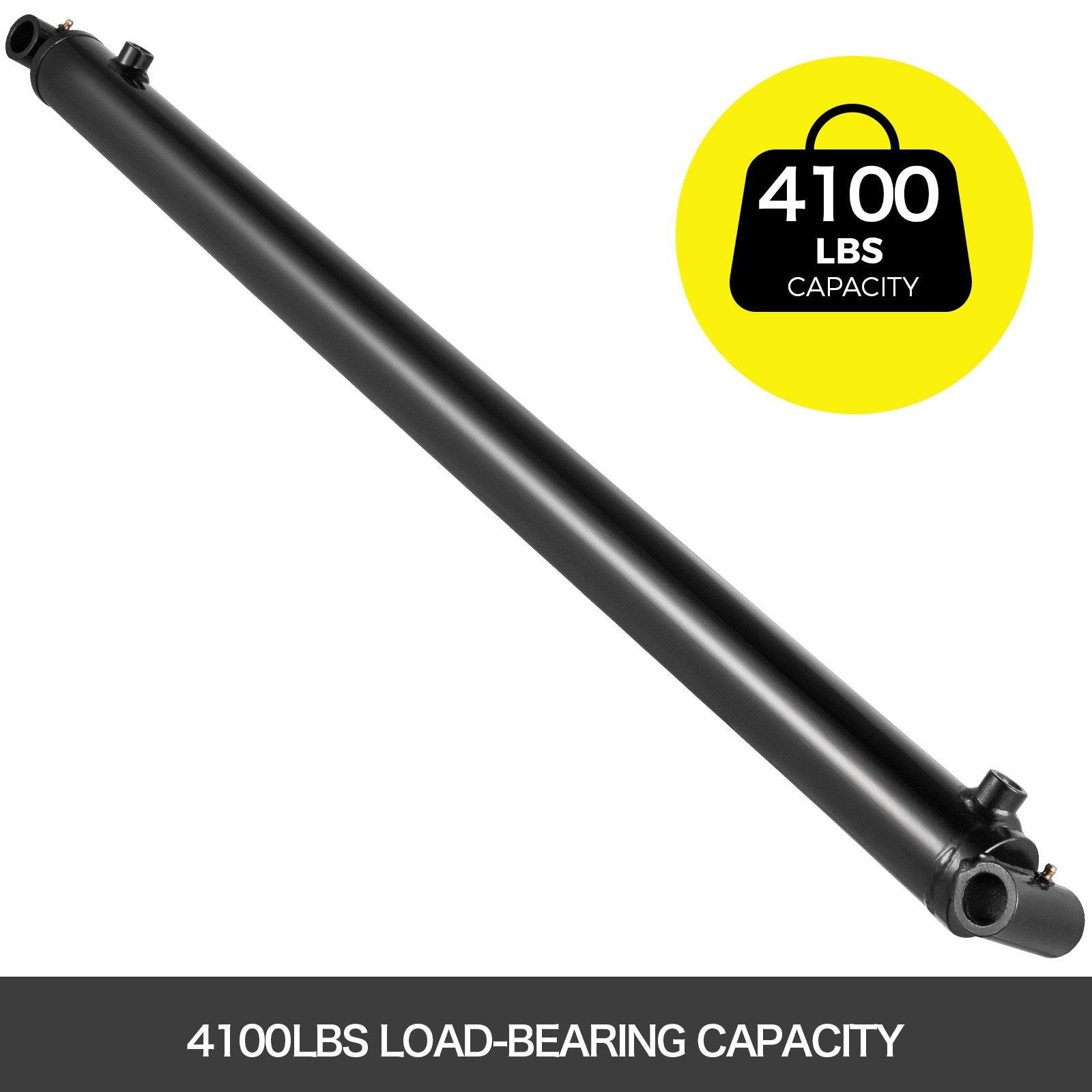

  • Max Load-Bearing Capacity: 4100 LBS
  • Max Length: 2032mm/80.0"
  • Weight: 33LBS/15kg
