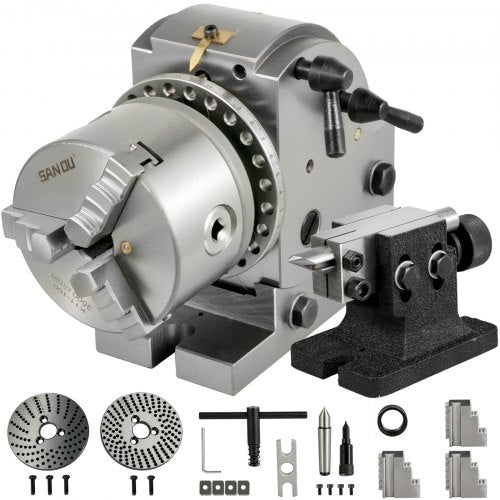

Dividing Head 4 Inch Indexing Head Milling 100MM Semi-Universal Dividing Head 4 Inch 3 jaw Chuck Dividing Head Set with Index Plates and Tailstock for Precision rotary table
Dividing Head 4 Inch Indexing Head Milling 100MM Semi-Universal Dividing Head 4 Inch 3 jaw Chuck Dividing Head Set with Index Plates and Tailstock for Precision rotary table
Regular price
3,564.90 SEK
Regular price
Sale price
3,564.90 SEK
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Features & Details
- 【ADJUSTABLE DIVIDING HEAD】- The semi-universal dividing head features 4" 3-jaw chuck, Spindle Hole Diameter: 18mm. The headstock is adjustable from the horizontal position to 90 degrees upward. Center Height: 4"/100mm. Free 3 more jaws for 4" chuck.

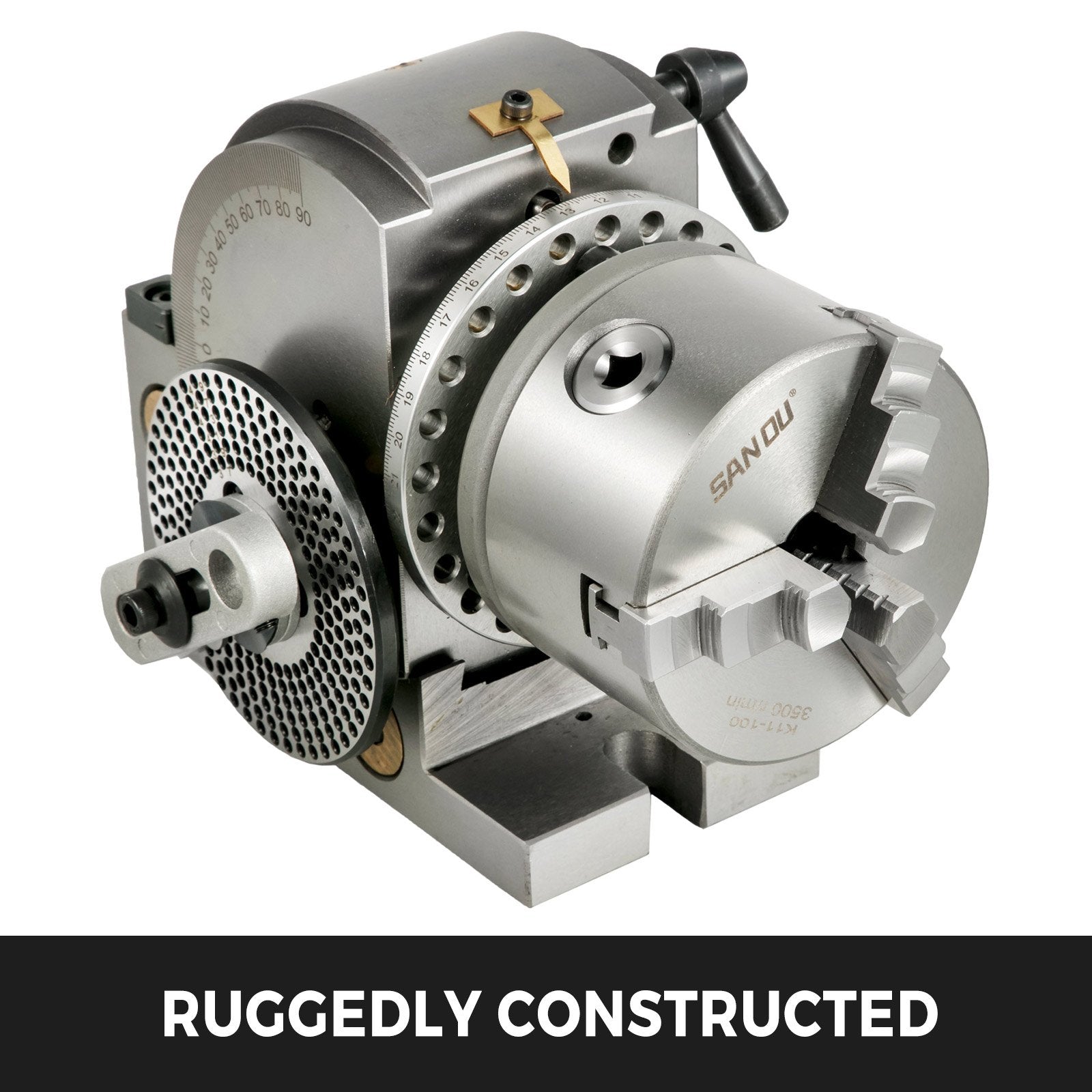

- 【SOLID CONSTRUCTION】- Made from HT200 to be a long life. The rigid frame provides high accuracy with little backlash for a smooth rotation. Reduction Ratio: 1:40.

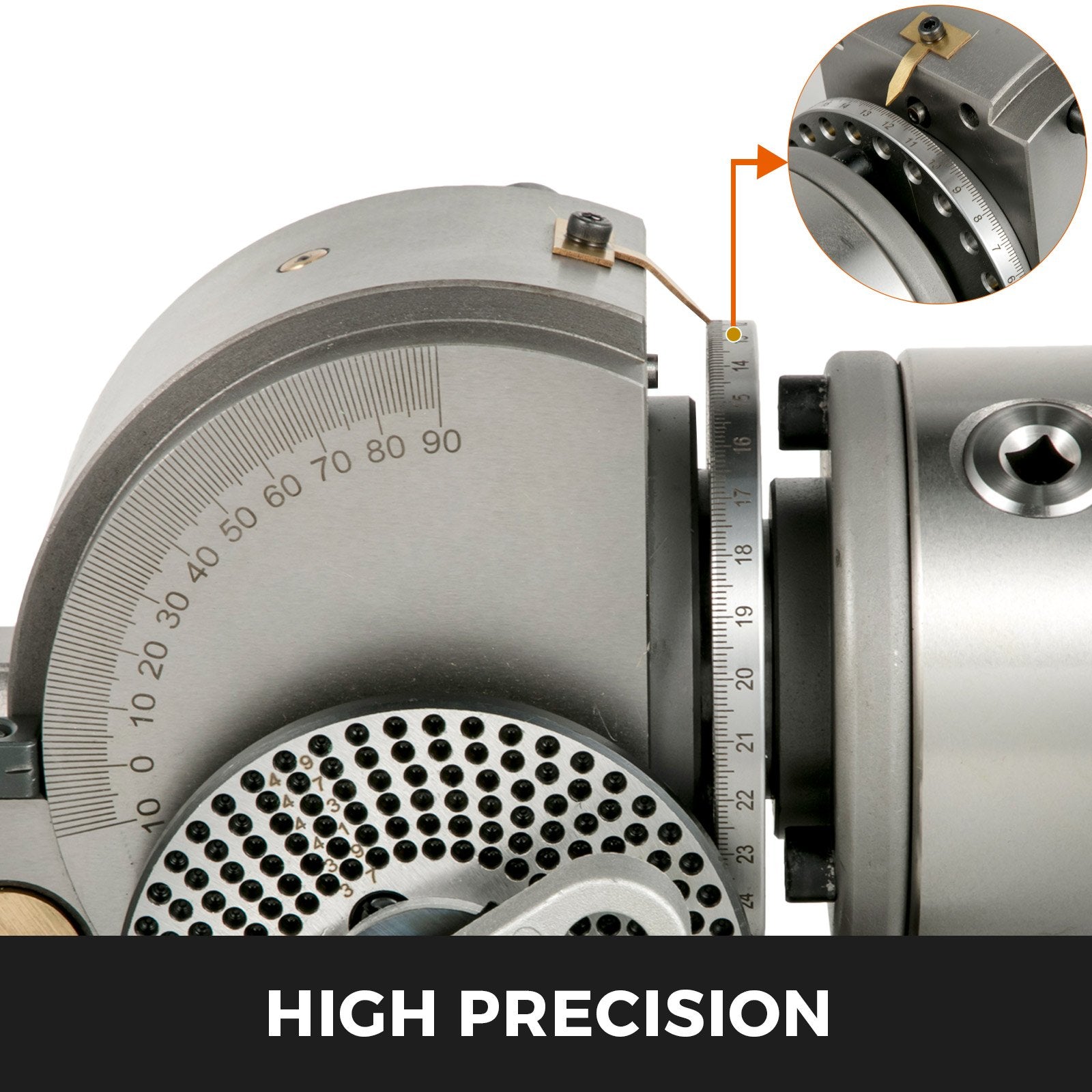

- 【CLEAR & ACCURATE】- Laser engraving scales. The quick-dividing holes can complete 2, 3, 4, 6, 8, 12, 24 division indexing. One circle for 360 degrees, one scale stands for 1 degree.

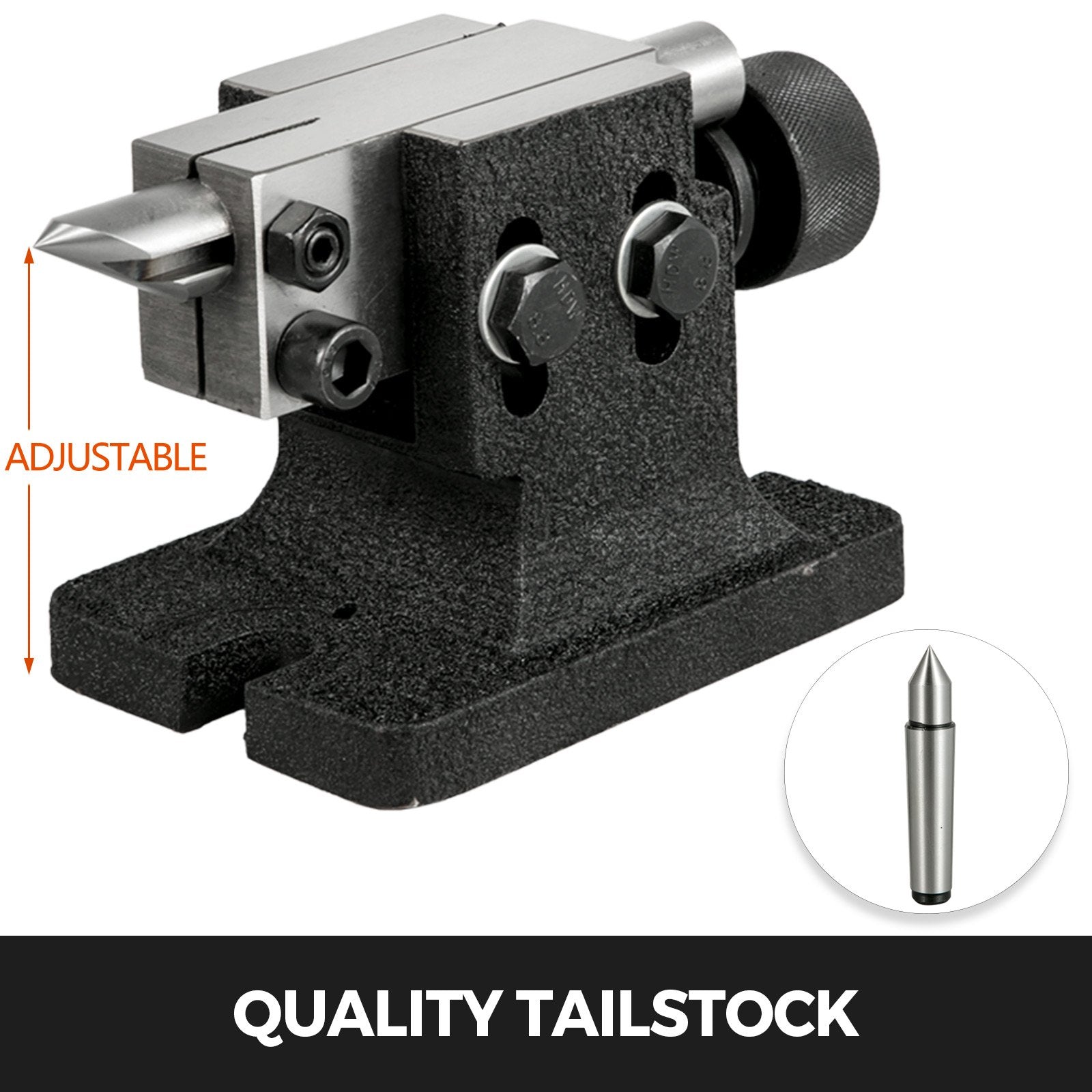

- 【MT2 TAILSTOCK ADJUSTABLE】- Huge live center for heavy-duty workpieces. Ball-bearing precision; turns smoothly. Tailstock: MT3. One free dead center.
- 【RICH DIVIDING HEAD SET】- 3 dividing head index plates are attached along with the dividing head for indirect dividing in any division indexing 2-50, 51-380 except prime numbers and certain other numbers.
- Reduction Ratio: 1:40
- Center Height: 4"/100mm
- Chuck Diameter: 4"/100mm
- Material: HT200
- Tailstock: MT2
