Hydraulic Dump Lift Kit, 17,600 lb/8 T Dump Trailer Hydraulic Scissor Hoist Kit Standard Kit, Hydraulic Dump Bed Kit with 12V Hydraulic Pump Unit Suitable for Scissor Lift Dump Trailers Trucks

Hydraulic Dump Lift Kit, 17,600 lb/8 T Dump Trailer Hydraulic Scissor Hoist Kit Standard Kit, Hydraulic Dump Bed Kit with 12V Hydraulic Pump Unit Suitable for Scissor Lift Dump Trailers Trucks

21,180.30 SEK
21,180.30 SEK
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features & Details
  • Heavy-Duty Lifting: This truck dump bed kit is specifically designed for hydraulic scissor lifts, suitable for 10-14 ft dump trailers and trucks. It supports a total weight of 8 t/17,600 lbs, including cargo and the bed. It is ideal for various heavy-lifting applications, such as agricultural transport, construction machinery, and vehicle hauling.

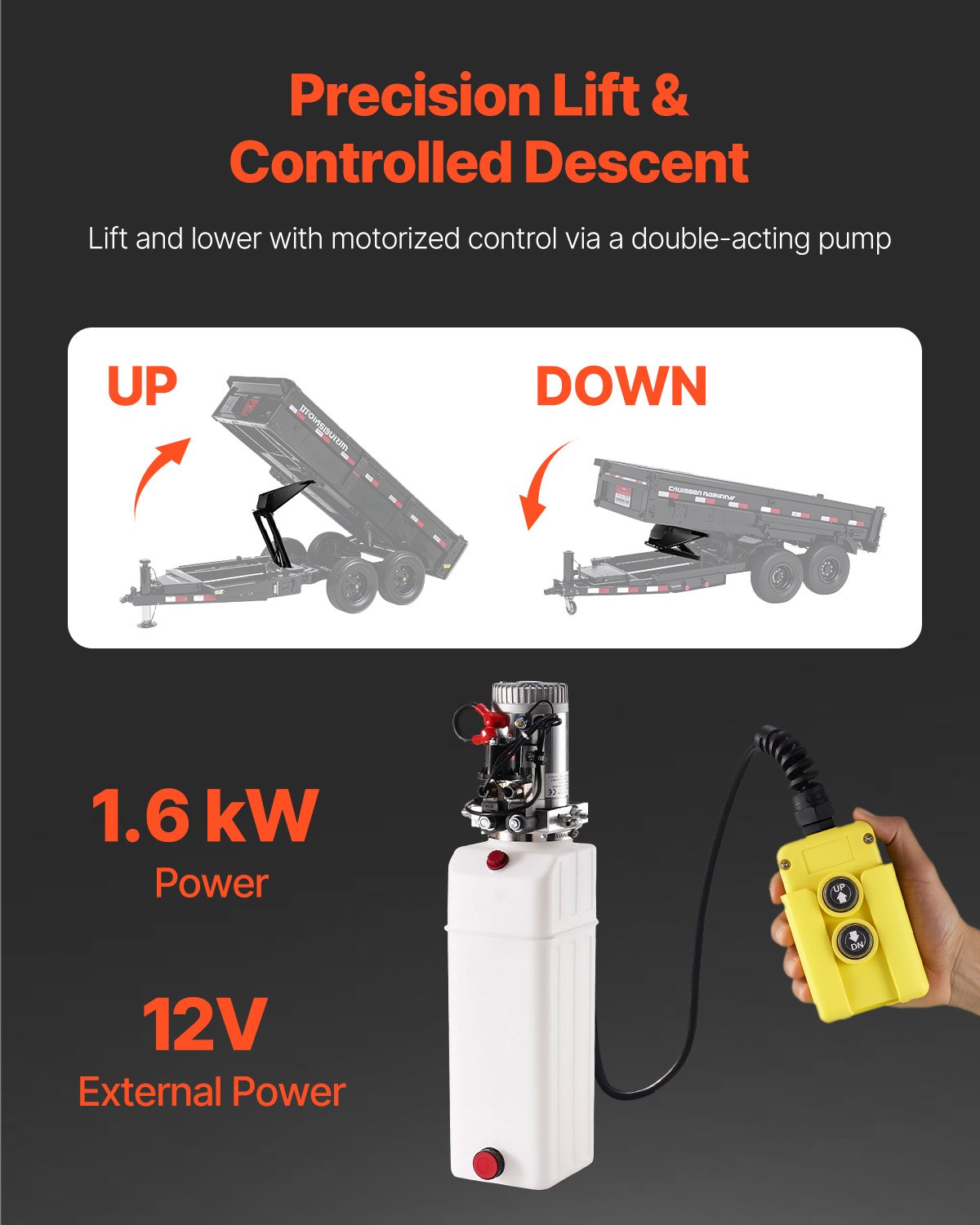

  • Efficient and Smooth: The 8 QT/7.6 L hydraulic pump in this dump bed kit features a double-acting system, allowing remote control of both lifting and lowering the bed. This ensures smooth and fast operation, reducing work time and labor. It is more efficient than single-acting pumps that rely on weight for slow descent. It is easily powered by a 12V vehicle source.

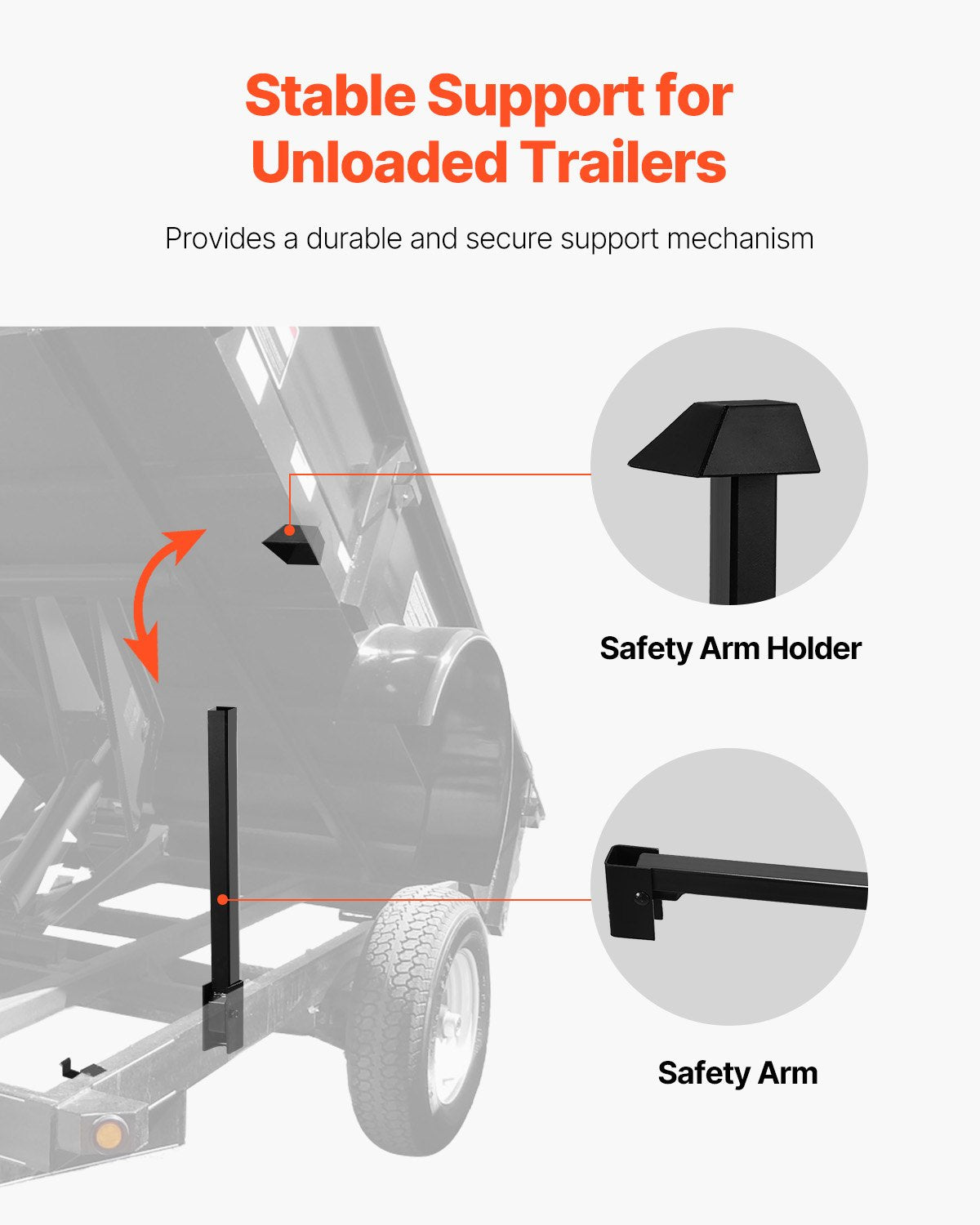

  • Security First: This hydraulic dump lift kit ensures secure operation with a safety arm that provides stable support when the trailer is unloaded, avoiding the risk of accidental lowering and minimizing operational risks.

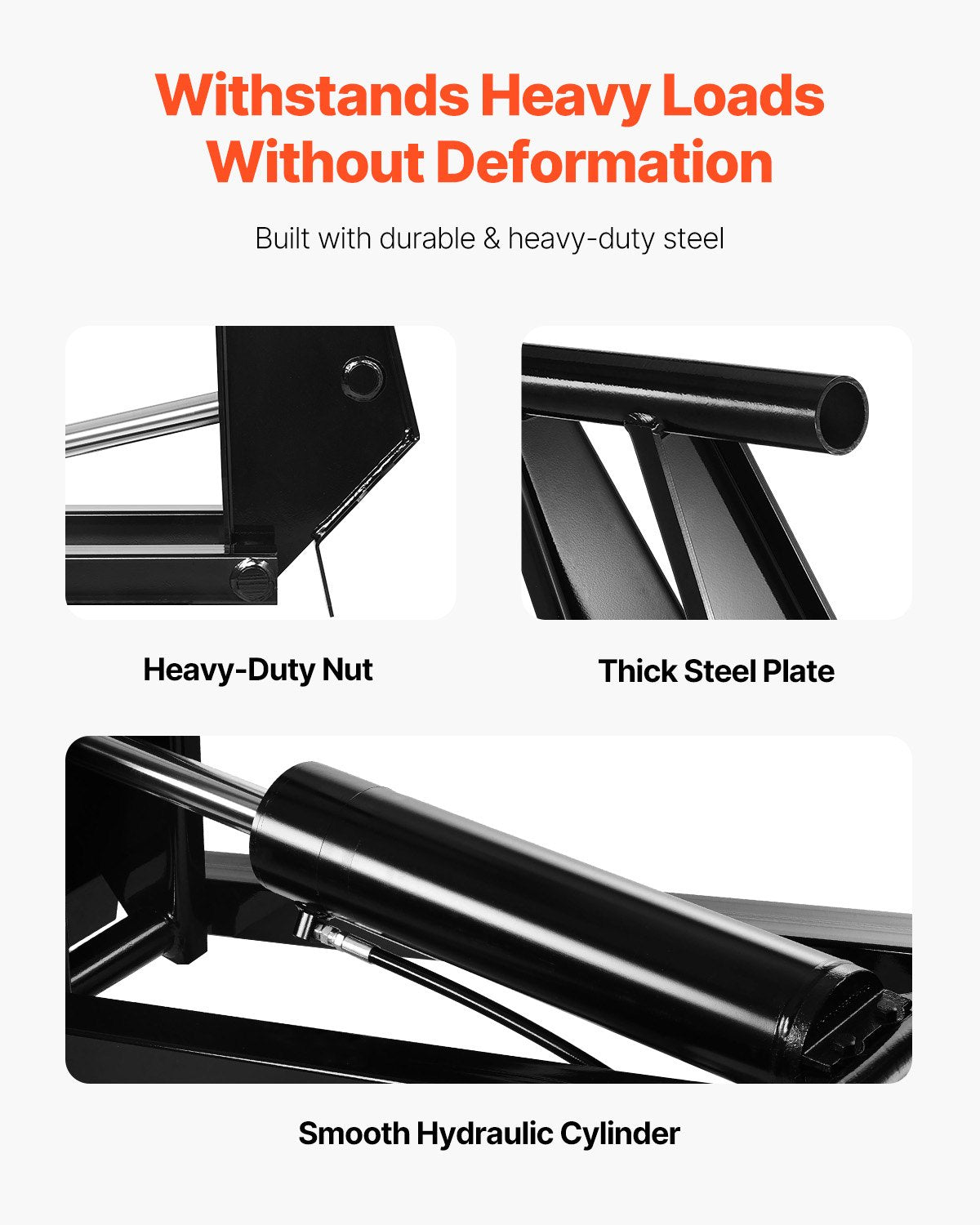

  • Durable and Long-Lasting: This dump trailer hydraulic scissor hoist kit is made from high-quality materials. The lifting components use high-strength steel to withstand heavy loads and impacts, resisting deformation and weather erosion. The plastic oil tank ensures stability in all conditions.
  • Easy to Maintain: To maintain sufficient lifting power and reduce failures, this hydraulic dump bed kit is recommended to perform maintenance every six months. This includes replacing the hydraulic oil and lubricating the lift connections. Installation requires welding and lifting.

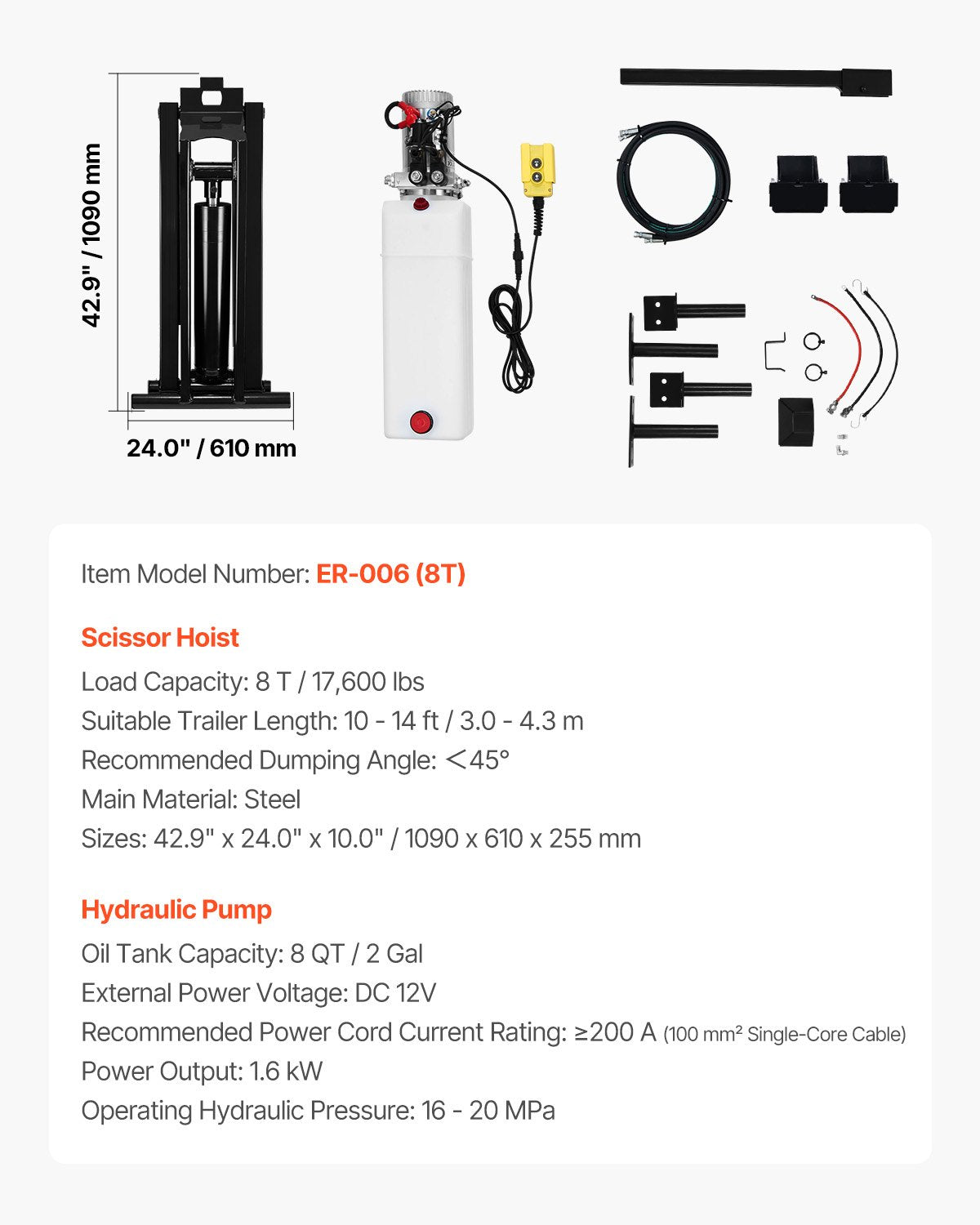

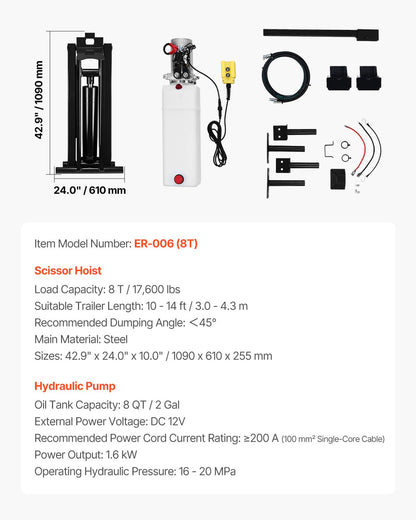

Product Specification
  • Recommended Dumping Angle: ＜45°
  • Oil Tank Material: PP Plastic
  • Maximum Body Tilt Angle: 120°
  • Hydraulic Oil Tank Capacity: 8 QT/7.6 L
  • Maximum Release Pressure: 3200 PSI/22 MPa
  • Main Body Plate Thickness: 0.3"/8 mm
  • Suitable Trailer Length: 10 - 14 ft
  • Power Output: 1.6 kW
  • Flow Rate: 1.45 GPM
  • Product Sizes: 42.9" x 24.0" x 10.0"/1090 x 610 x 255 mm
  • Load Capacity: 8 T / 17, 600 lbs
  • External Power Voltage: DC 12V
  • Item Model Number: ER-006 (8T)
  • User-Provided Power Cable Capacity: ≥200 A (Single-core Cable of 100 mm²)
  • Net Weight: 335.1 lbs / 152 kg
  • Main Material: Steel
  • Operating Hydraulic Pressure: 16 - 20 MPa
