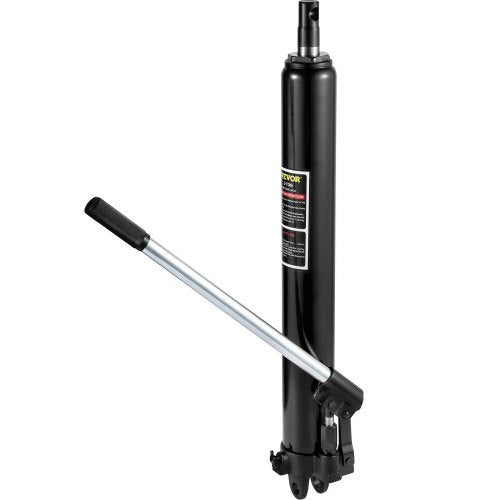

Hydraulic Long Ram Jack, 3 Tons/6600 lbs Capacity, with Single Piston Pump and Clevis Base, Manual Cherry Picker with Handle, for Garage/Shop Cranes, Engine Lift Hoist, Black

Hydraulic Long Ram Jack, 3 Tons/6600 lbs Capacity, with Single Piston Pump and Clevis Base, Manual Cherry Picker with Handle, for Garage/Shop Cranes, Engine Lift Hoist, Black

974.10 SEK
974.10 SEK
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features & Details
  • Handles up to 3-Ton: This 3-Ton capacity long ram hydraulic jack helps you convert your existing hoist to a convenient and fast one. A quick way to raise loads without the backache. A must-have for hydraulic cranes, engine hoists, and a wide variety of applications.

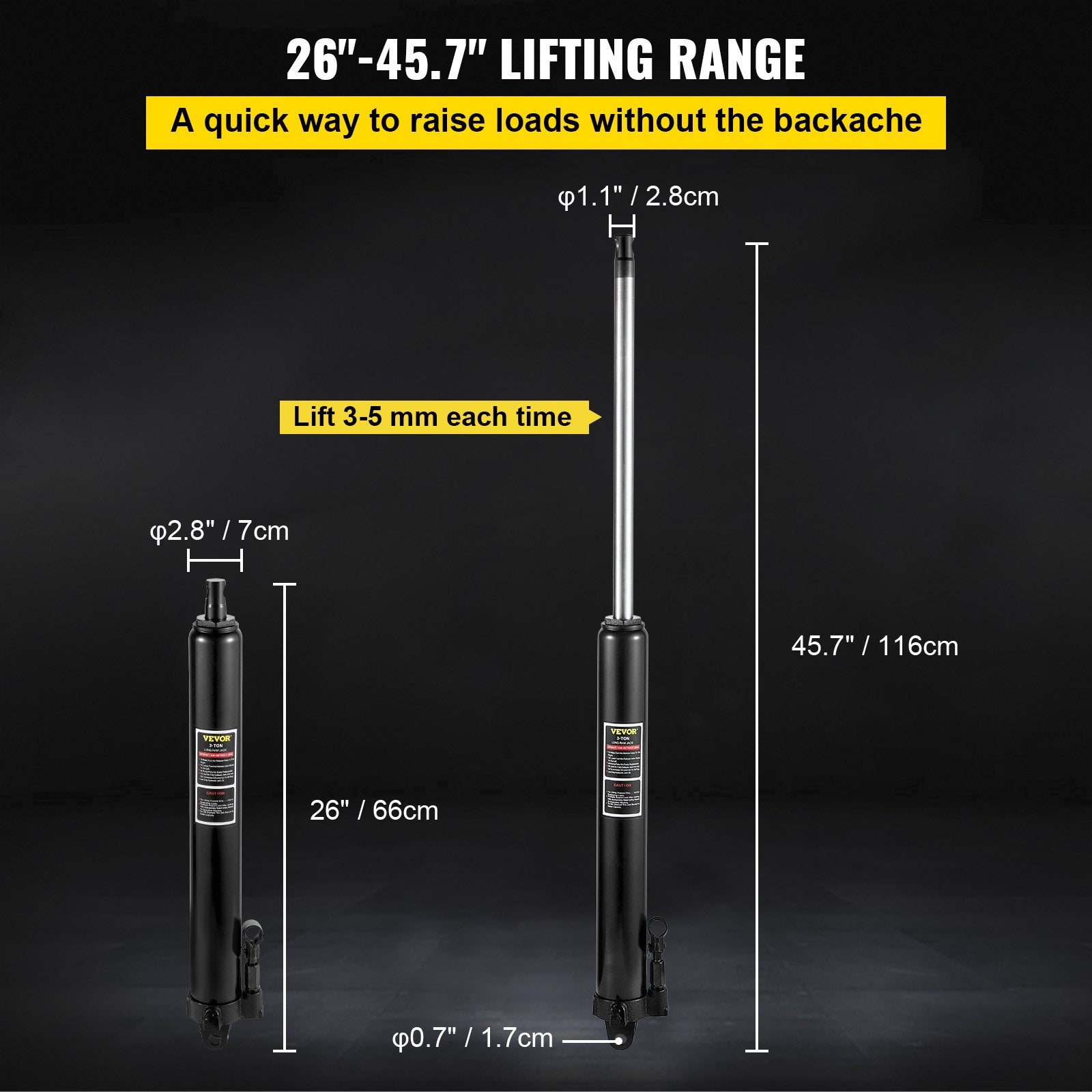

  • 26" -45.7" Lifting Range: Minimum height: 26 in/66 cm. Maximum height: 45.7 in/116 cm. The long ram hydraulic round bottom jack provides an ample 19.7 in/50 cm stroke for the optimal lift of objects up to 3 ton/6600 lb. in weight. And the slow release function for reliability and security.

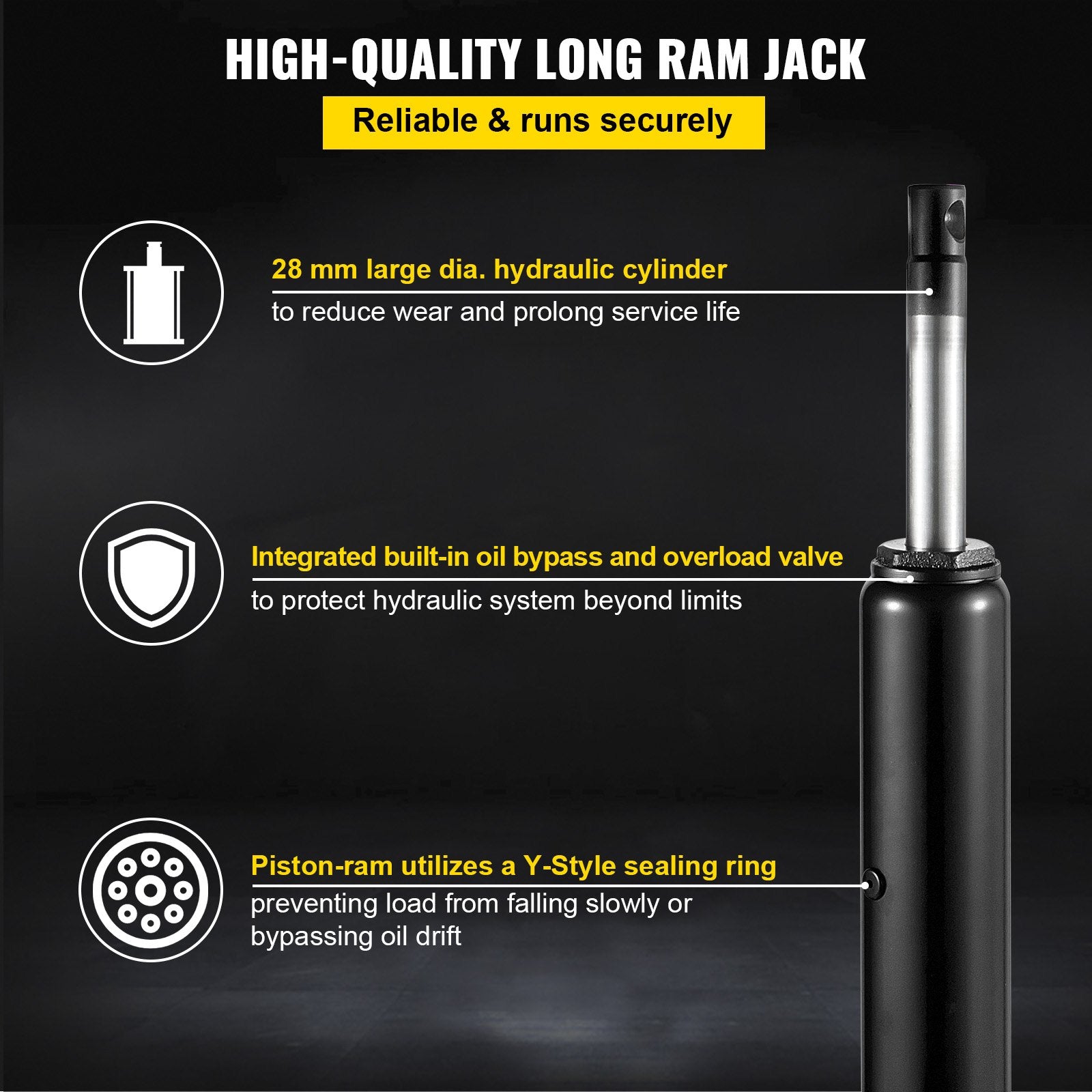

  • Reliable & Durable Jack: Large diameter hydraulic steel cylinder unit results in lower oil pressure needed to move the load, which helps to reduce wear and extend service life. The piston-ram is treated and polished to resist skiving and utilizes a Y-Style polyurethane sealing ring with a backup ring, preventing the load from falling slowly or bypassing oil drift.

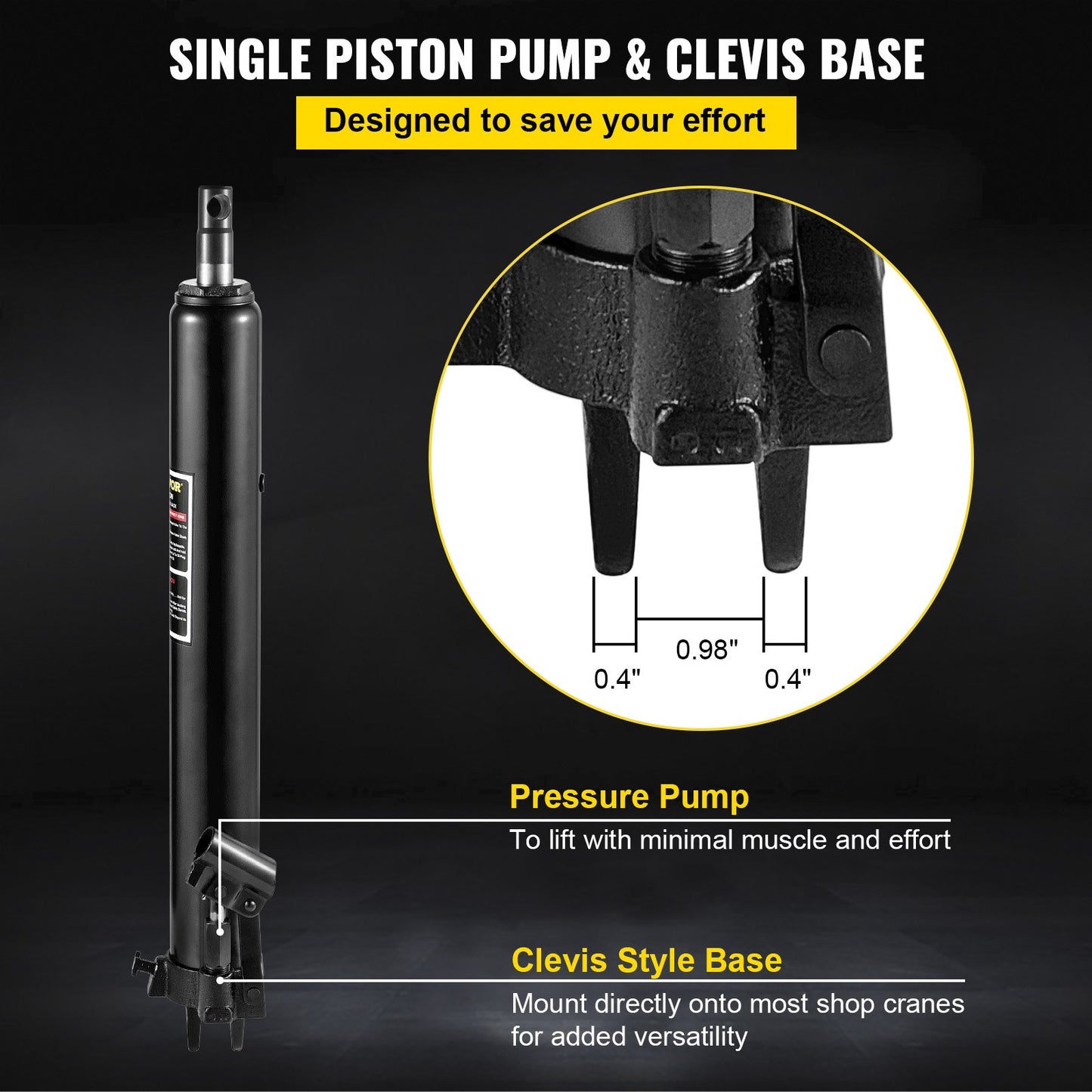

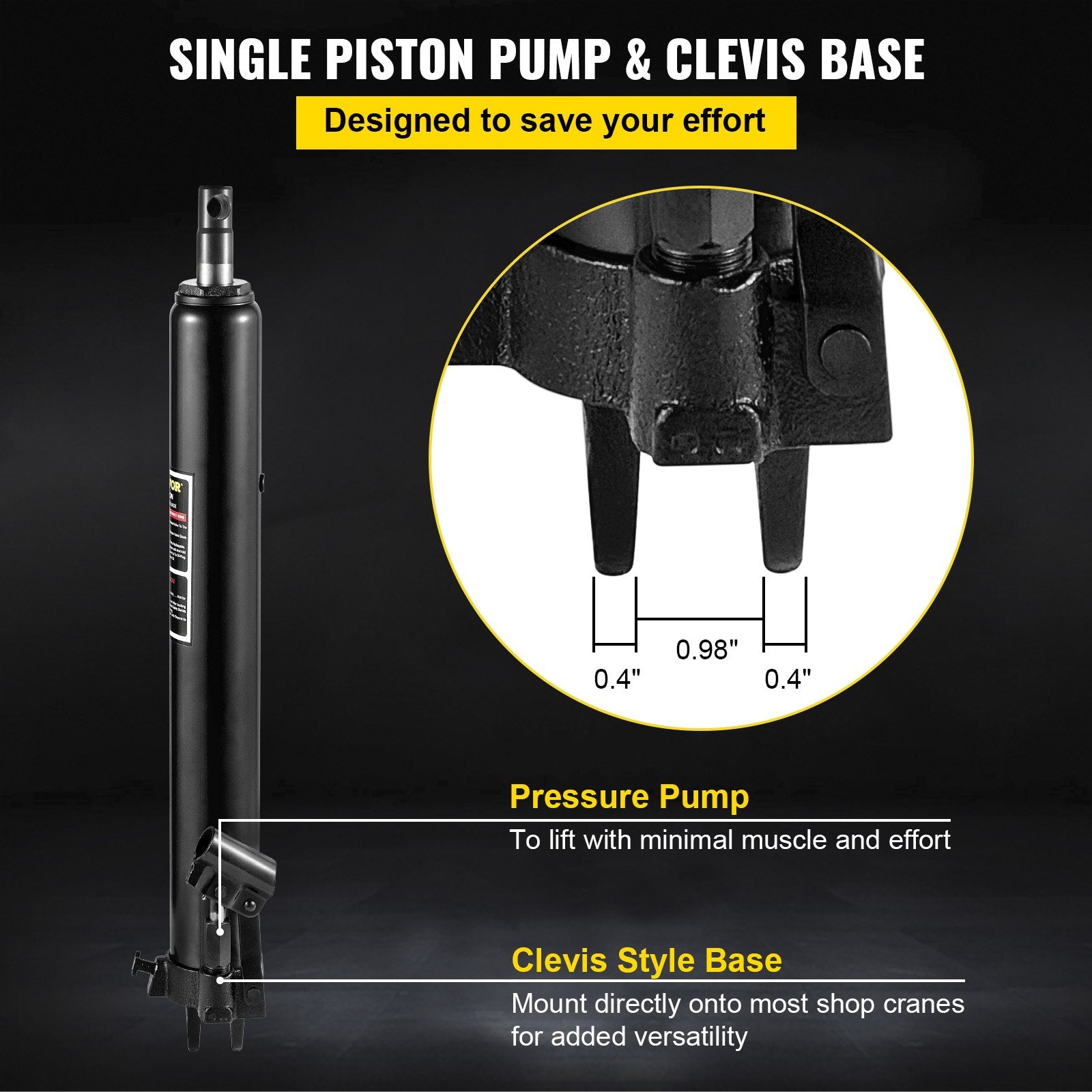

  • Labor-saving Long Ram: Long ram jack features a convenient handle with a rubberized comfort grip. Clevis style base allows the jack mounts directly onto most shop cranes. And the glide-action pressure pump is designed to lift with minimal muscle and effort.
  • Sturdy Steel Construction: Durable frame is constructed of high-grade steel and built to exacting standards for quality and durability. A lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish. Paint is oil, grease, and dirt-resistance for easy cleanup.

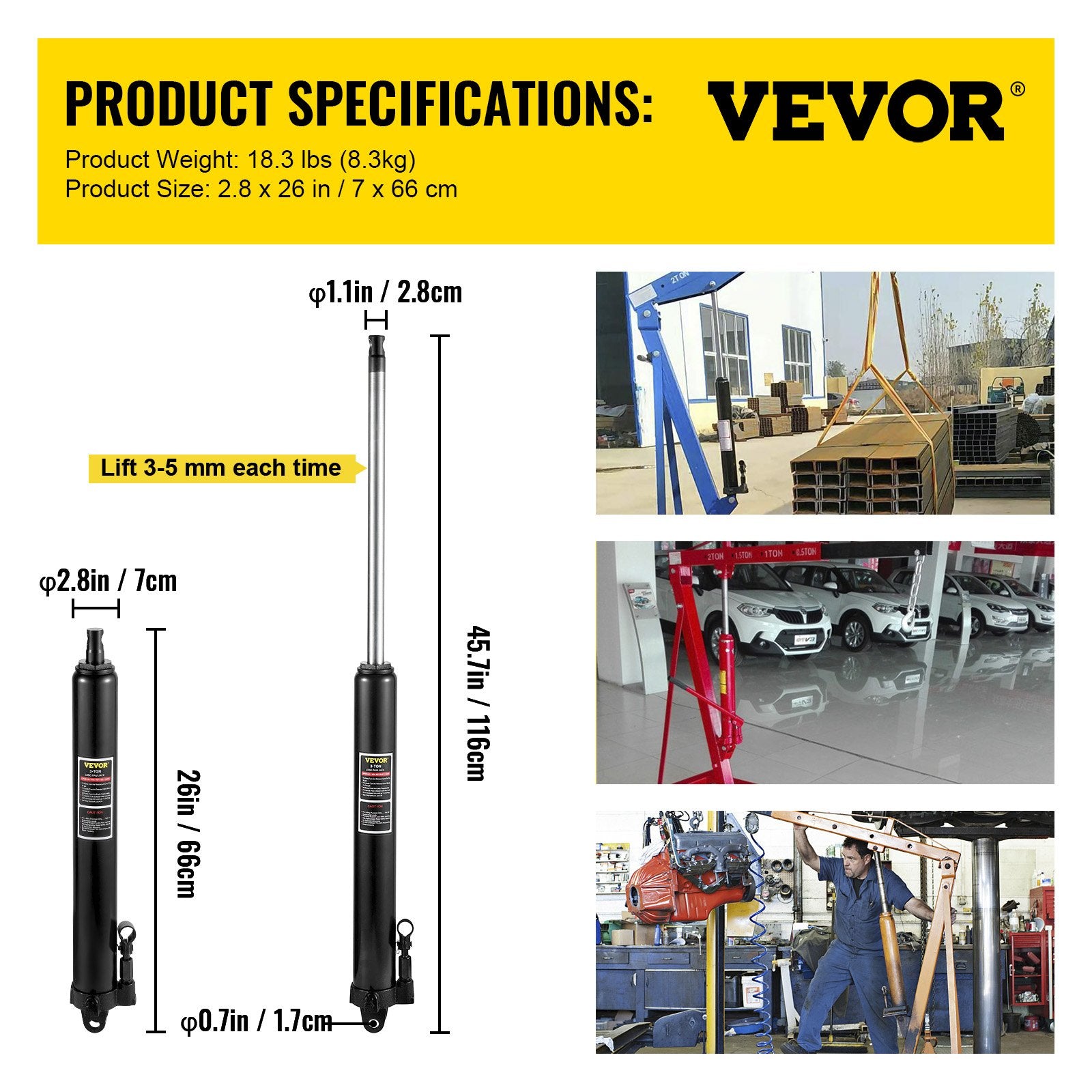

Product Specification
  • Stoke: 19.7 in/50 cm
  • Pinhole Dia.: 0.7 in/1.7 cm
  • Product Diameter: 2.8 in/ 7 cm
  • Lifting Capacity: 3 tons/6600 lbs
  • Piston Rod Dia.: 1.1 in/2.8 cm
  • Model: VV-CGQJD-LDJ-3T
  • Min. Lift Height: 26 in/66 cm
  • Max. Lift Height: 45.7 in/116 cm
  • Weight: 18.3 lb/8.3 kg
